Dropdown Menu Item of the Top Button in the CRM Robot Designer CRM_XXX_ROBOT_DESIGNER_TOOLBAR

Scope: intranet

You can add your dropdown menu item to the top button of the robot designer in CRM entities: leads, deals, new invoices, custom entity types.

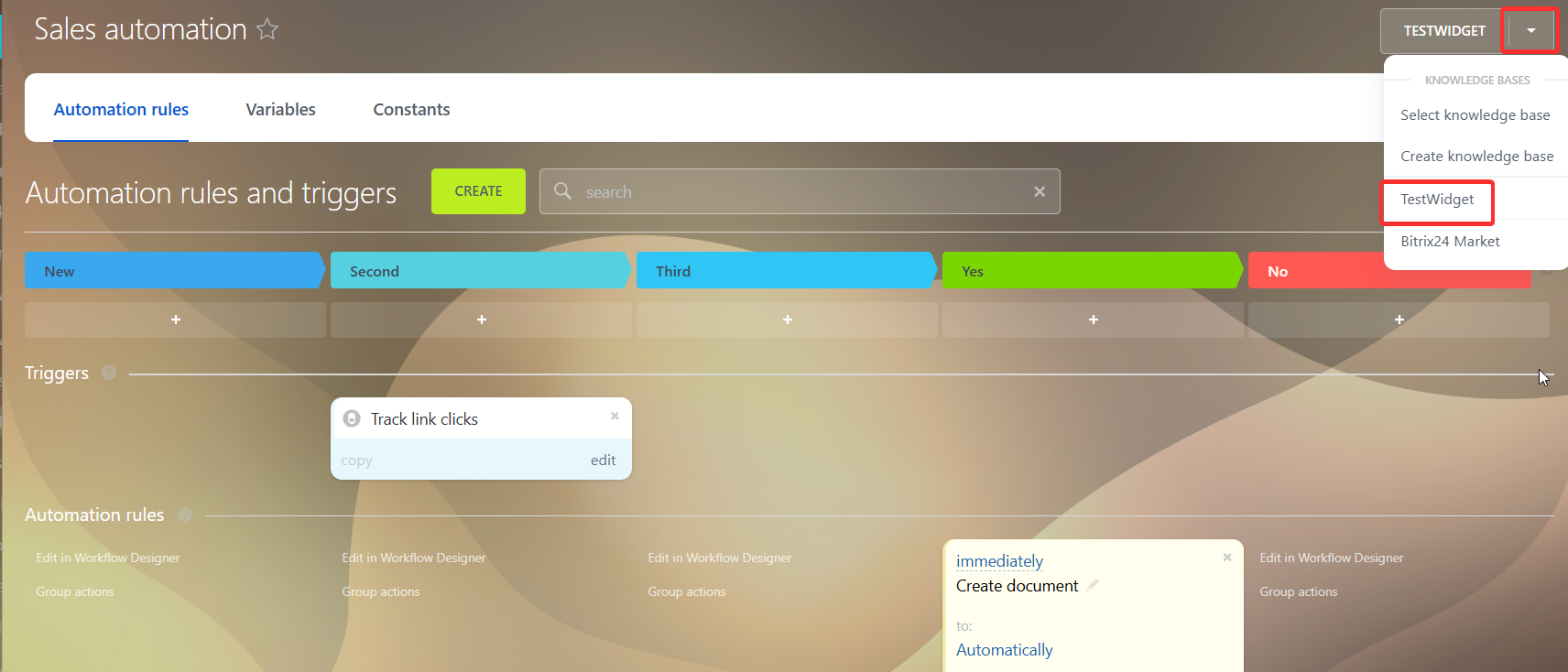

Widget as a Dropdown Menu Item of the Top Button in the Robot Designer

The specific widget placement code is specified in the PLACEMENT parameter of the placement.bind method.

The widget will not be displayed in the interface until the application installation is complete. Check the application installation

Widget Code	Location
`CRM_LEAD_ROBOT_DESIGNER_TOOLBAR`	Dropdown menu item of the top button in the lead

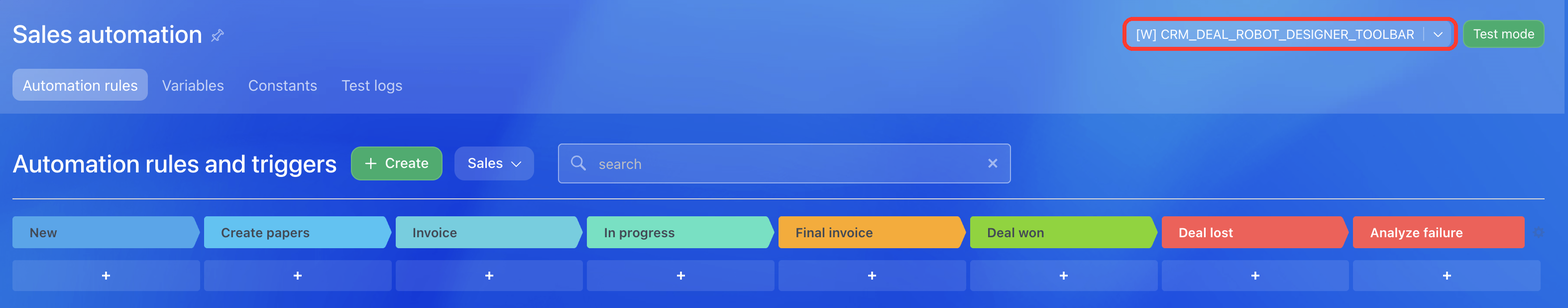

`CRM_DEAL_ROBOT_DESIGNER_TOOLBAR`	Dropdown menu item of the top button in the deal
`CRM_SMART_INVOICE_ROBOT_DESIGNER_TOOLBAR`	Dropdown menu item of the top button in the new invoices
`CRM_DYNAMIC_XXX_ROBOT_DESIGNER_TOOLBAR`	Dropdown menu item of the top button in custom CRM entity types. Replace XXX with the numeric identifier of the specific custom entity type. For example, `CRM_DYNAMIC_183_LIST_MENU`

What the Handler Receives

Data is transmitted as a POST request

CRM_LEAD_ROBOT_DESIGNER_TOOLBAR

CRM_DEAL_ROBOT_DESIGNER_TOOLBAR

CRM_SMART_INVOICE_ROBOT_DESIGNER_TOOLBAR

CRM_DYNAMIC_XXX_ROBOT_DESIGNER_TOOLBAR


        Array
        (
            [DOMAIN] => xxx.bitrix24.com
            [PROTOCOL] => 1
            [LANG] => en
            [APP_SID] => 2ce63de88c4a9f5843e148d6f7b7a6ed
            [AUTH_ID] => d54fba6600631fcd00005a4b00000001f0f1073f6f5fc879c485f124cc572c68a6ee17
            [AUTH_EXPIRES] => 3600
            [REFRESH_ID] => c5cee16600631fcd00005a4b00000001f0f107833fc0c197d37b9b13905b691787bbdb
            [member_id] => da45a03b265edd8787f8a258d793cc5d
            [status] => L
            [PLACEMENT] => CRM_LEAD_ROBOT_DESIGNER_TOOLBAR
        )


        Array
        (
            [DOMAIN] => xxx.bitrix24.com
            [PROTOCOL] => 1
            [LANG] => en
            [APP_SID] => aa01af1bd7f74d944ab61bdc8ed4f011
            [AUTH_ID] => ec4fba6600631fcd00005a4b00000001f0f107219e88649824f5ded51f56111616561c
            [AUTH_EXPIRES] => 3600
            [REFRESH_ID] => dccee16600631fcd00005a4b00000001f0f107021a4718dc94fa53f048dac305baff48
            [member_id] => da45a03b265edd8787f8a258d793cc5d
            [status] => L
            [PLACEMENT] => CRM_DEAL_ROBOT_DESIGNER_TOOLBAR
        )


        Array
        (
            [DOMAIN] => xxx.bitrix24.com
            [PROTOCOL] => 1
            [LANG] => en
            [APP_SID] => 551f45b6c2344572c396f678b19b9fd2
            [AUTH_ID] => 9c44d0670076a4b8006f518000000001201c07653252db32225bf0a643c676de22ba44
            [AUTH_EXPIRES] => 3600
            [REFRESH_ID] => 8cc3f7670076a4b8006f518000000001201c07f2d093e0a9e3af54d1c1bd9f51b39b95
            [member_id] => e8857f161a1a8288f312b6cc6ad67995
            [status] => L
            [PLACEMENT] => CRM_SMART_INVOICE_ROBOT_DESIGNER_TOOLBAR
        )


        Array
        (
            [DOMAIN] => xxx.bitrix24.com
            [PROTOCOL] => 1
            [LANG] => en
            [APP_SID] => c1ec1ec90542fe796fe8868c4da3c482
            [AUTH_ID] => 9745d0670076a4b8006f518000000001201c070f6ab1c3c782c839d8c502019162ff5a
            [AUTH_EXPIRES] => 3600
            [REFRESH_ID] => 87c4f7670076a4b8006f518000000001201c078c7f1717892822ebf3ef37611b566015
            [member_id] => e8857f161a1a8288f312b6cc6ad67995
            [status] => L
            [PLACEMENT] => CRM_DYNAMIC_183_ROBOT_DESIGNER_TOOLBAR
        )

Required parameters are marked with *

Parameter `type`	Description
DOMAIN* `string`	The Bitrix24 address where the widget handler was invoked
PROTOCOL* `string`	Secure or non-secure HTTP protocol: `0` - HTTP `1` - HTTPS
LANG* `string`	The user interface language of Bitrix24 that invoked the widget. You can localize the interface language in your widget based on this value
APP_SID `string`	String identifier of the application that registered the widget handler
AUTH_ID `string`	Authorization token OAuth 2 issued for the user who invoked the widget. Can be used for REST API calls on behalf of this user
AUTH_EXPIRES `integer`	Time in seconds after which the authorization token will become invalid
REFRESH_ID `string`	Refresh token OAuth 2 issued for the user who invoked the widget. Can be used to refresh the authorization token on behalf of this user
member_id* `string`	Unique string identifier of Bitrix24 where the widget handler was invoked.
status `string`	Type of application that registered the handler for this widget. Accepts values: `L` - local application `F` - free mass-market application
PLACEMENT* `string`	Code for the widget embedding location. You can use the same handler URL for all your widgets. The value that Bitrix24 will report in the `PLACEMENT` parameter will help determine from which specific widget embedding location your handler was invoked in each case
PLACEMENT_OPTIONS `string`	Additional data in the form of a JSON string that defines the context of the widget execution. For example, this could be an array containing the numeric identifier of the CRM entity in the detail form where the widget handler was invoked, etc. The `PLACEMENT_OPTIONS` parameter, along with the `PLACEMENT` parameter, allows you to accurately determine for which specific widget embedding location and object the widget handler was invoked.
