How to Fix the "Site Cannot Be Reached" Error When Opening an Application

The server application interface is hosted on an external server. When a user opens an application, Bitrix24 loads the interface page into the embedded <iframe> block.

For example, a user launches a local application but sees the message "Site Cannot Be Reached" instead of its interface. This occurs if the application server sends headers that prohibit embedding the page into Bitrix24. The browser cancels the load and displays an error:

The website "address_app_site" does not allow a connection


To fix this error, check the application page response headers, determine where they are being added, and allow embedding for your Bitrix24 address.

Why the Application Does Not OpenWhy the Application Does Not Open

Page embedding is regulated by two HTTP headers:

• X-Frame-Options with the value SAMEORIGIN allows opening the page in a frame only on a site with the same source
• the frame-ancestors directive of the Content-Security-Policy header specifies a list of sources permitted to embed the page

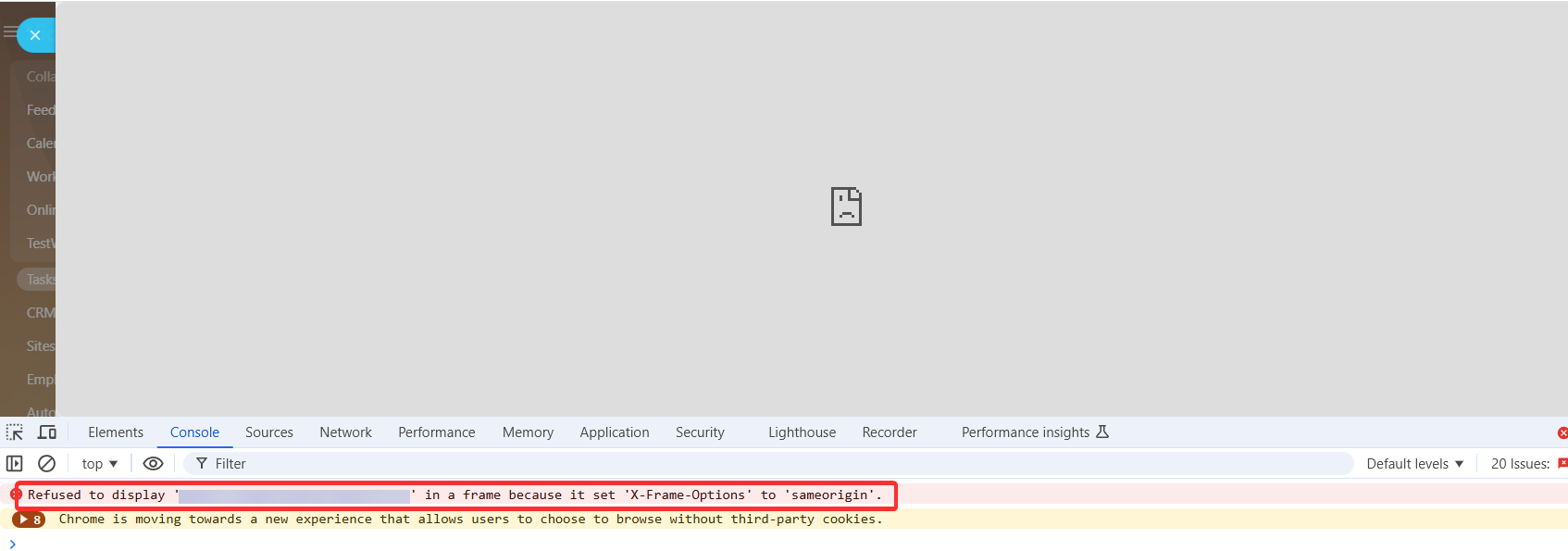

You can see which header blocked the page in the browser console, for example:

Refused to display 'https://address_app_site/' in a frame because it set 'X-Frame-Options' to 'sameorigin'


How to Check Response HeadersHow to Check Response Headers

1. Open the application in Bitrix24 and launch the browser developer tools
2. On the Console tab, look for a message containing X-Frame-Options or frame-ancestors
3. On the Network tab, reload the page and select the application document request
4. In the Response Headers block, check the values of X-Frame-Options and Content-Security-Policy
5. Determine which component is adding the restrictive header: the application, the web server, a proxy server, or a CDN

Check the actual response headers rather than just the configuration files. For example, the application might add a header via PHP, while a proxy server might duplicate or replace it.

How to Allow the Application to OpenHow to Allow the Application to Open

Specify the exact Bitrix24 source where the application is being opened. For the address https://your-domain.bitrix24.com, the CSP policy might look like this:

Content-Security-Policy: frame-ancestors 'self' https://your-domain.bitrix24.com;


If the server already sends Content-Security-Policy, add the Bitrix24 address to the existing directive frame-ancestors. Do not replace the other policy directives.

Do not replace SAMEORIGIN with X-Frame-Options: ALLOW-FROM: directive ALLOW-FROM is deprecated. Remove the limiting X-Frame-Options for the application pages at the level where it is added, and configure the allowed sources via frame-ancestors.

Example for NginxExample for Nginx

Before changing the configuration, create a backup of the files. Then find the directives that control embedding:

grep -iR -E "X-Frame-Options|Content-Security-Policy|frame-ancestors" /etc/nginx


If the CSP policy is not yet defined at another level, add it for the application pages:

add_header Content-Security-Policy "frame-ancestors 'self' https://your-domain.bitrix24.com" always;


If headers are added at multiple levels, change the settings for each of them.

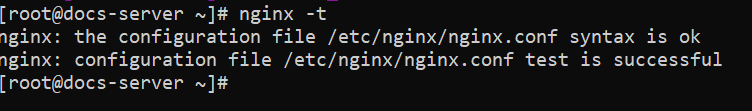

Check the nginx configuration:

nginx -t


A successful check contains the messages syntax is ok and test is successful. If nginx reports an error, fix it and repeat the check. Do not reload a configuration with errors.

After a successful check, reload the configuration:

nginx -s reload


Open the application again and check the response headers in the Network tab. The Bitrix24 address must be present in frame-ancestors, and the limiting X-Frame-Options must not be added for the application page.

If the Application Is Hosted on Self-Hosted Bitrix24If the Application Is Hosted on Self-Hosted Bitrix24

When the Frame Protection setting is enabled in self-hosted Bitrix24, PHP adds two headers to the response:

X-Frame-Options: SAMEORIGIN
        Content-Security-Policy: frame-ancestors 'self';


For application pages, it is safer to configure an exception than to disable protection for the entire site:

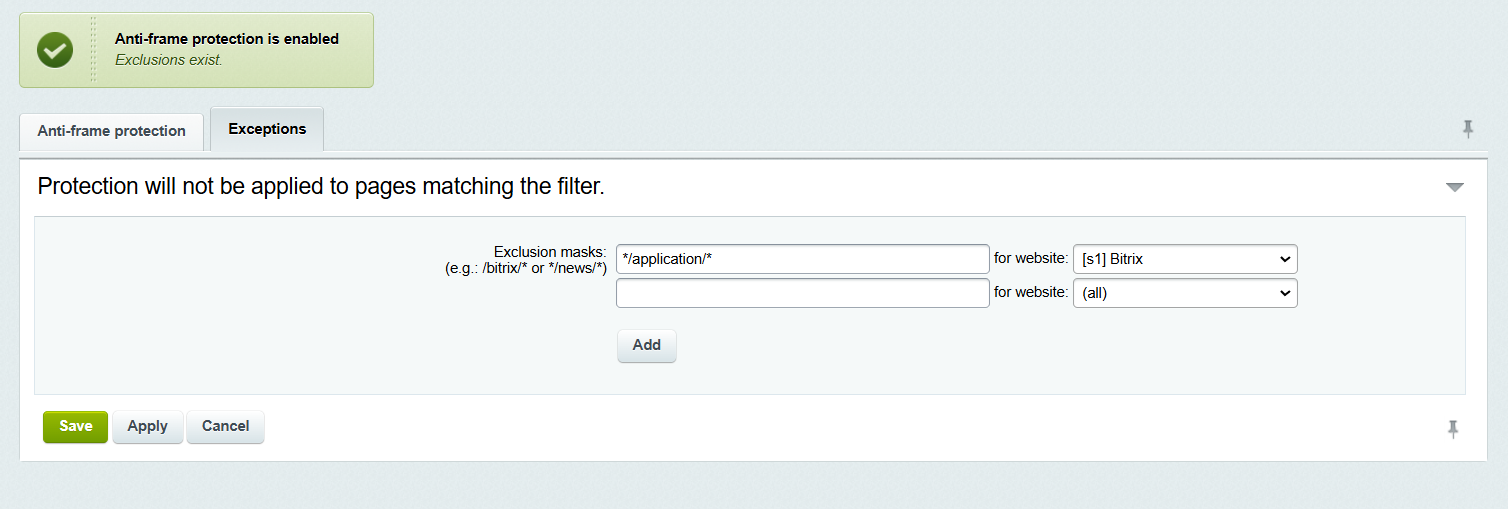

1. In the administration section, go to Settings > Proactive Defense > Frame Protection
2. Go to the Exceptions tab
3. Add a URL mask for the application pages, for example /application/*, and select the appropriate site
4. Save the settings and check the response headers again

For a URL that matches the exception mask, Bitrix24 does not add X-Frame-Options and Content-Security-Policy from the frame protection setting. If the headers remain in the response, they are being added by another component. Repeat the response header check.

What to Check If the Error PersistsWhat to Check If the Error Persists
