Dropdown Menu Item Above the CRM_XXX_LIST_TOOLBAR Elements List
If you are developing integrations for Bitrix24 using AI tools (Codex, Claude Code, Cursor), connect to the MCP server so that the assistant can utilize the official REST documentation.
Scope:
placement, crm
The widget adds its own item to the menu above the list of CRM objects: leads, contacts, companies, deals, estimates, new invoices, orders, and custom object types.
The placement code is specified in the PLACEMENT parameter of the placement.bind method.
The widget is not displayed in the interface until the application installation is complete. Check the application installation
Where the Widget is Embedded
|
Placement Code |
Location |
|
|
Dropdown menu item above the list of leads |
|
|
Dropdown menu item above the list of contacts |
|
|
Dropdown menu item above the list of companies |
|
|
Dropdown menu item above the list of deals |
|
|
Dropdown menu item above the list of new invoices |
|
|
Dropdown menu item above the list of online store orders |
|
|
Dropdown menu item above the list of estimates |
|
|
Dropdown menu item above the list of custom CRM object type elements. Instead of XXX, specify the numeric identifier of the specific custom object type. For example, |

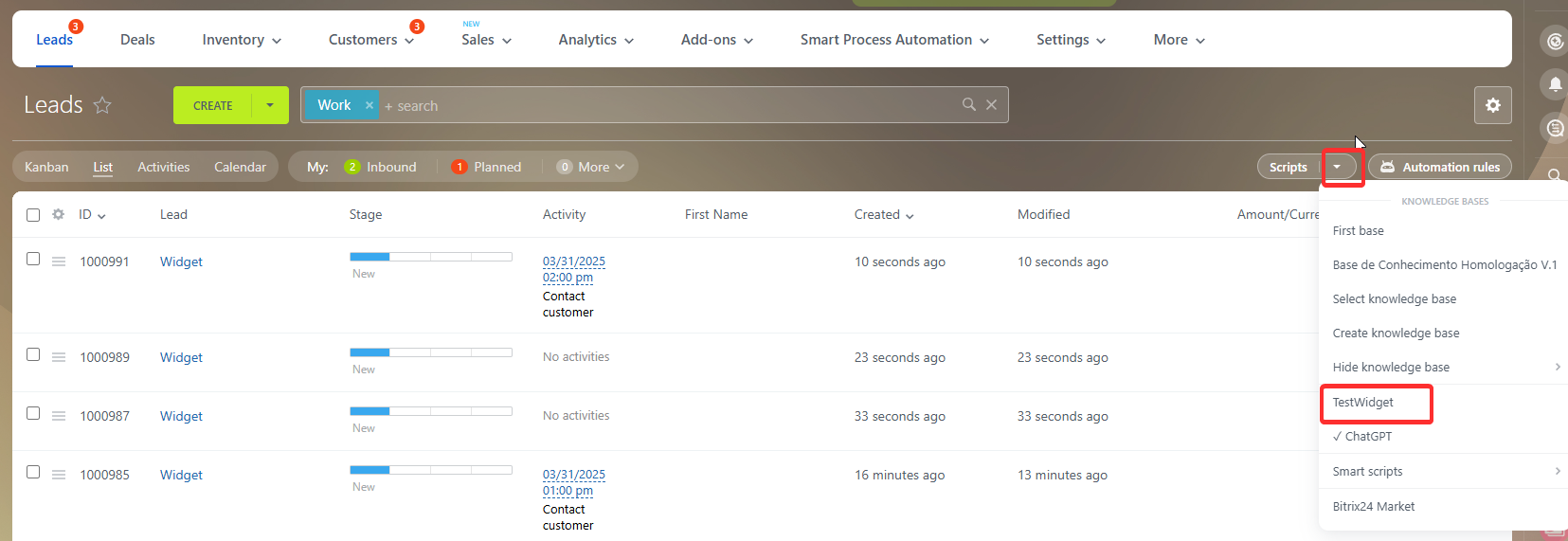

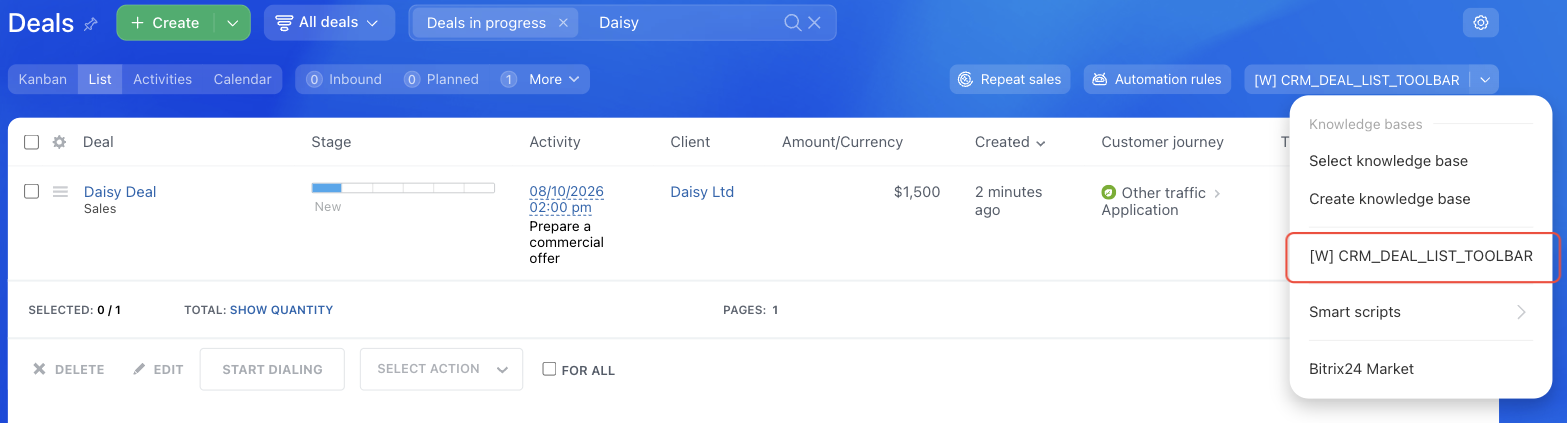

Where to Find It in the Interface
Open a CRM list and click the arrow next to the button on the right side of the panel above the list. The application item appears in this menu, next to the knowledge base and Bitrix24 Market items.

What the Handler Receives
Data is sent in a POST request: some parameters come in the handler URL query string, the rest in the request body
The example is shown for the CRM_DEAL_LIST_TOOLBAR placement. Other codes send the same set of data: only the PLACEMENT value changes.
Array
(
[DOMAIN] => xxx.bitrix24.com
[PROTOCOL] => 1
[LANG] => en
[APP_SID] => c75986789a2a58e22f445686334804e6
[AUTH_ID] => 4b2e7166007e9c94001e30ba00000001f0f107c93a5f28e7b04d61ca8f3e52d7
[AUTH_EXPIRES] => 3600
[REFRESH_ID] => 3a1d9966007e9c94001e30ba00000001f0f107d81b3e07f6a95c40db7e2f41c6
[SERVER_ENDPOINT] => https://oauth.bitrix.info/rest/
[APPLICATION_TOKEN] => ec1b2074a9d3f5c81b6e40d27a95cf38
[APPLICATION_SCOPE] => crm,placement
[member_id] => d897063e1ce7c5eb9f04b9751eef5915
[status] => L
[PLACEMENT] => CRM_DEAL_LIST_TOOLBAR
[PLACEMENT_OPTIONS] => {"URI":"\/crm\/deal\/list\/"}
)
Required parameters are marked with *
Parameters in the Handler URL Query String
|
Parameter |
Description |
|
DOMAIN* |
The Bitrix24 address where the widget handler was invoked |
|
PROTOCOL* |
Secure or non-secure HTTP protocol:
|
|
LANG* |
The user interface language of Bitrix24 that invoked the widget. You can localize the interface language in your widget based on this value |
|
APP_SID* |
Application session identifier. Bitrix24 generates a new one each time the widget is rendered and uses it to link the js library with the application environment |
Parameters in the POST Request Body
|
Parameter |
Description |
|
AUTH_ID |
Authorization token OAuth 2 issued for the user who invoked the widget. Can be used for REST API calls on behalf of this user |
|
AUTH_EXPIRES |
Time in seconds after which the authorization token will become invalid |
|
REFRESH_ID |
Refresh token OAuth 2 issued for the user who invoked the widget. Can be used to refresh the authorization token on behalf of this user |
|
SERVER_ENDPOINT* |
Address of the Bitrix24 authorization server needed to refresh OAuth 2 tokens |
|
APPLICATION_TOKEN* |
Application token. The same value is passed in the |
|
APPLICATION_SCOPE* |
List of scopes granted to the application, separated by commas. Shows which REST API methods are available with the authorization token received |
|
member_id* |
Unique string identifier of Bitrix24 where the widget handler was invoked. |
|
status |
Type of application that registered the handler for this widget. Accepts values:
|
|
PLACEMENT* |
The placement code. You can use the same handler URL for all your widgets. The value that Bitrix24 will report in the |
|
PLACEMENT_OPTIONS |
Additional data in the form of a JSON string that defines the context of the widget execution. For example, this could be an array containing the numeric identifier of the CRM object in the detail form where the widget handler was invoked, etc. The |
Bitrix24 adds a URI key to PLACEMENT_OPTIONS — the path with the query string of the page from which the widget was opened. It arrives for any placement, along with the keys of that placement itself. The key is absent if the browser did not send the Referer header or if the widget was opened from a page on a different domain.
How to Parse the Call Context
PLACEMENT_OPTIONS arrives as a JSON string, not as an array: parse it on the handler side before use. The set of keys is specific to each placement and is described in the PLACEMENT_OPTIONS section of this page.
$placement = $_POST['PLACEMENT'] ?? '';
$options = json_decode($_POST['PLACEMENT_OPTIONS'] ?? '{}', true);
options = json.loads(request.form.get("PLACEMENT_OPTIONS", "{}") or "{}")
In B24JsSDK, there is no need to parse the string: the $b24.placement.options property returns a ready object, and $b24.placement.placement returns the placement code.
What the Handler Must Return
The handler responds with a regular HTML page — Bitrix24 displays it in a frame in place of the widget. The page must allow embedding: if the application server sends the X-Frame-Options or Content-Security-Policy headers that prohibit framing, an empty area remains in place of the widget. How to fix it is described in the article Site Does Not Allow Connection.
PLACEMENT_OPTIONS
The PLACEMENT_OPTIONS value is passed as a JSON string with the call context.
The placement has no keys of its own — the context carries only the universal URI key. The object identifier does not arrive as a separate parameter: the widget opens above the list, not above a specific element.
OPTIONS When Registering via placement.bind
This placement does not support the OPTIONS parameters. The values passed are not retained: the placement.get method returns an empty array for such a registration.
Code Examples
How to Use Examples in Documentation
curl -X POST \
-H "Content-Type: application/json" \
-H "Accept: application/json" \
-d '{
"PLACEMENT": "CRM_DEAL_LIST_TOOLBAR",
"HANDLER": "https://your-domain.com/widgets/crm-list-toolbar-handler.php",
"TITLE": "My deal list item",
"LANG_ALL": {
"en": {
"TITLE": "My deal list item"
},
"de": {
"TITLE": "Mein Deal-Listenelement"
}
},
"auth": "**put_access_token_here**"
}' \
https://**put_your_bitrix24_address**/rest/placement.bind
// This snippet is an ES module: top-level await requires type="module" or a bundler.
// $b24 is an already-initialized SDK instance (see the SDK "Get started" guide).
import { Text } from '@bitrix24/b24jssdk'
import type { B24Frame } from '@bitrix24/b24jssdk'
declare const $b24: B24Frame
try {
const response = await $b24.actions.v2.call.make<boolean>({
method: 'placement.bind',
params: {
PLACEMENT: 'CRM_DEAL_LIST_TOOLBAR',
HANDLER: 'https://your-domain.com/widgets/crm-list-toolbar-handler.php',
TITLE: 'My deal list item',
LANG_ALL: {
en: {
TITLE: 'My deal list item',
},
de: {
TITLE: 'Mein Deal-Listenelement',
},
},
},
requestId: Text.getUuidRfc4122()
})
// The payload is available only on a successful response
if (!response.isSuccess) {
console.error(response.getErrorMessages().join('; '))
} else {
const result = response.getData()!.result
console.info('Placement bound successfully:', result)
}
} catch (error) {
// Thrown on transport or SDK failures (AjaxError, SdkError, etc.)
console.error(error)
}
<!-- Load the SDK (UMD build); it is exposed as the global B24Js -->
<script src="https://unpkg.com/@bitrix24/b24jssdk@1/dist/umd/index.min.js"></script>
<script>
async function bindCrmDealListToolbar() {
try {
// Initialize the SDK inside a Bitrix24 frame
const $b24 = await B24Js.initializeB24Frame()
const response = await $b24.actions.v2.call.make({
method: 'placement.bind',
params: {
PLACEMENT: 'CRM_DEAL_LIST_TOOLBAR',
HANDLER: 'https://your-domain.com/widgets/crm-list-toolbar-handler.php',
TITLE: 'My deal list item',
LANG_ALL: {
en: {
TITLE: 'My deal list item',
},
de: {
TITLE: 'Mein Deal-Listenelement',
},
},
},
requestId: B24Js.Text.getUuidRfc4122()
})
// The payload is available only on a successful response
if (!response.isSuccess) {
console.error(response.getErrorMessages().join('; '))
return
}
const result = response.getData().result
console.info('Placement bound successfully:', result)
} catch (error) {
// Thrown on transport or SDK failures (AjaxError, SdkError, etc.)
console.error(error)
}
}
document.addEventListener('DOMContentLoaded', bindCrmDealListToolbar)
</script>
try {
$response = $b24Service
->core
->call(
'placement.bind',
[
'PLACEMENT' => 'CRM_DEAL_LIST_TOOLBAR',
'HANDLER' => 'https://your-domain.com/widgets/crm-list-toolbar-handler.php',
'TITLE' => 'My deal list item',
'LANG_ALL' => [
'en' => [
'TITLE' => 'My deal list item',
],
'de' => [
'TITLE' => 'Mein Deal-Listenelement',
],
],
]
);
$result = $response->getResponseData()->getResult();
if ($result->error()) {
error_log($result->error());
} else {
echo 'Success: ' . print_r($result->data(), true);
}
} catch (Throwable $e) {
error_log($e->getMessage());
echo 'Error binding placement: ' . $e->getMessage();
}
BX24.callMethod(
'placement.bind',
{
PLACEMENT: 'CRM_DEAL_LIST_TOOLBAR',
HANDLER: 'https://your-domain.com/widgets/crm-list-toolbar-handler.php',
TITLE: 'My deal list item',
LANG_ALL: {
en: { TITLE: 'My deal list item' },
de: { TITLE: 'Mein Deal-Listenelement' }
}
},
function(result) {
if (result.error()) {
console.error(result.error());
} else {
console.log(result.data());
}
}
);
require_once('crest.php');
$result = CRest::call(
'placement.bind',
[
'PLACEMENT' => 'CRM_DEAL_LIST_TOOLBAR',
'HANDLER' => 'https://your-domain.com/widgets/crm-list-toolbar-handler.php',
'TITLE' => 'My deal list item',
'LANG_ALL' => [
'en' => [
'TITLE' => 'My deal list item',
],
'de' => [
'TITLE' => 'Mein Deal-Listenelement',
],
],
]
);
echo '<PRE>';
print_r($result);
echo '</PRE>';
// client and ctx are already created — see the Go SDK section
res, err := client.Core().Call(ctx, "placement.bind", b24.Params{
"PLACEMENT": "CRM_DEAL_LIST_TOOLBAR",
"HANDLER": "https://your-domain.com/widgets/crm-list-toolbar-handler.php",
"TITLE": "My deal list item",
"LANG_ALL": b24.Params{
"ru": b24.Params{
"TITLE": "My deal list item",
},
"en": b24.Params{
"TITLE": "My deal list item",
},
},
})
if err != nil {
return fmt.Errorf("placement.bind: %w", err)
}
// The response arrives as json.RawMessage — unmarshal it into the response
// shape of the placement.bind method, see "Response Handling" on its page.
fmt.Printf("%s\n", res.Result)
Common Mistakes
|
Mistake |
Solution |
|
|
Register the placement on behalf of an application. A placement cannot be bound with a webhook |
|
|
The code is assembled for an object type that this placement does not support, or the application has not been granted the |
|
The widget is registered but does not appear in the interface |
Complete the application installation and reload the page |
|
The item is not visible above the list of elements |
Click the arrow next to the button on the right side of the panel above the list: the item is displayed in this menu, next to the knowledge base and Bitrix24 Market items |
Other registration error codes are listed in the "Possible Error Codes" section of the placement.bind page.
