Complete OAuth 2.0 Authorization Protocol

OAuth is an open authorization protocol that allows a third party to gain limited access to a user's protected resources without needing to share their login and password.

In Bitrix24, the OAuth protocol is used for local and mass-market applications and is not used in the case of local webhooks.

To determine whether you need to implement user authorization using the full protocol in your application, you can refer to the following statements:

1. I have my own web service (my external application, my separate software, etc.)
2. The user is already authorized in my service.
3. I want the user to now authorize in their Bitrix24, and my service to obtain authorization tokens for that Bitrix24 so that my service can work with the REST API of that Bitrix24.
4. I do not want the user to work with my service "inside" Bitrix24; REST will be used for data exchange, but all scenarios will remain on the side of my service.

If you answered "yes" to all the questions listed, you indeed need to implement the connection using the full OAuth protocol. If your answer is "no" at least once, you should consider the simplified scenario for using OAuth.

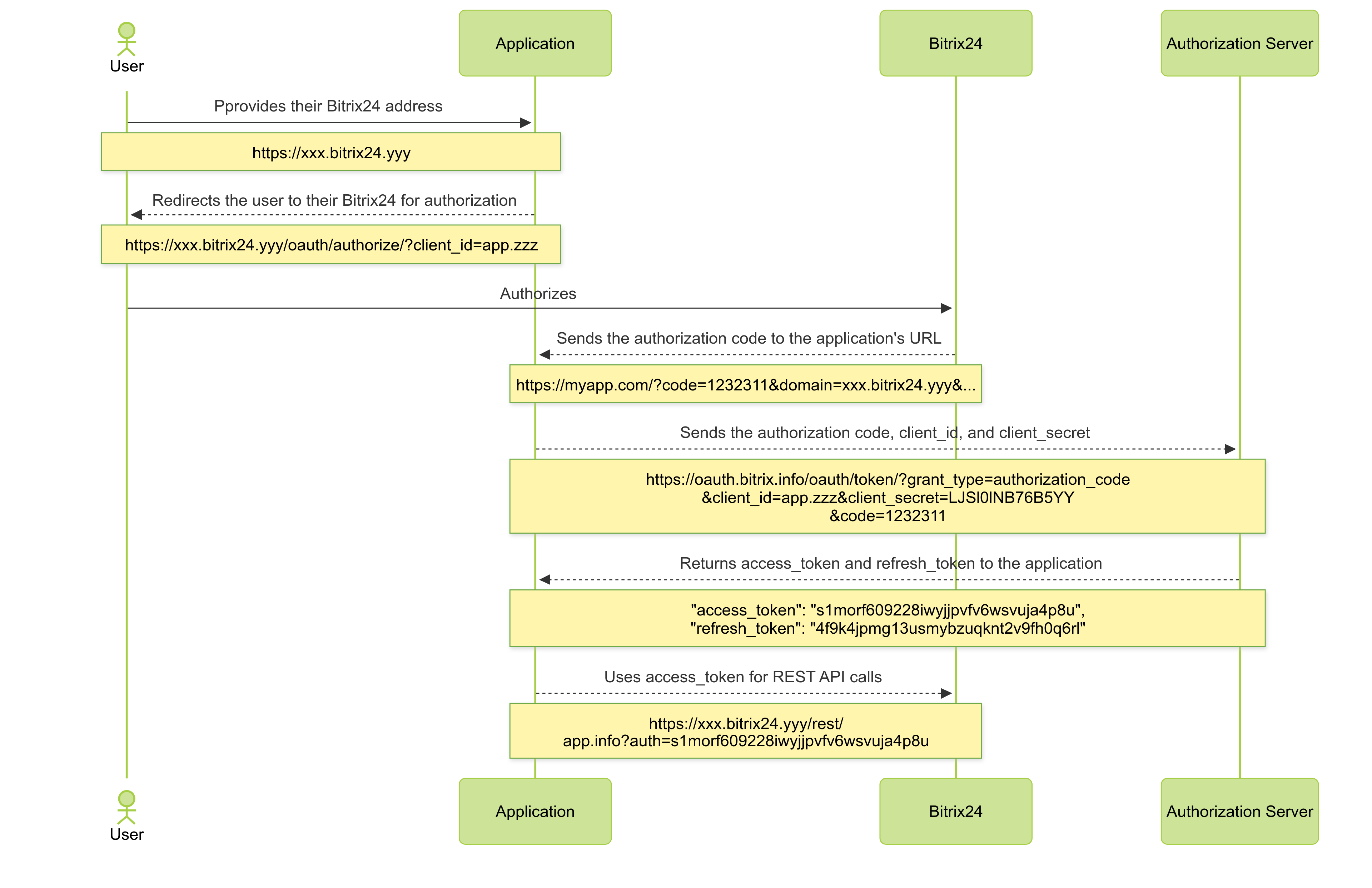

How the Protocol WorksHow the Protocol Works

The protocol is widely used by a vast number of services around the world, as it allows an application to access the API on behalf of a specific user of a specific account.

For the OAuth server, authorization indicates that the user has granted access to the application. The application provides its secret. The account brings everything together and issues the application the appropriate type of access.

The protocol consists of several steps:

1. The user provides your application with their Bitrix24 address.
2. The application sends the user to their Bitrix24 to authorize, adding its client_id to the request.
3. In the case of successful authorization in their Bitrix24, the user will be automatically redirected to the application's URL with an additional parameter - the authorization code code. Note that this is not yet the authorization token that will be used for working with REST. This is a code needed to obtain the authorization token.
4. The application, having received the code for the specific Bitrix24, directly contacts the authorization server, sending code, client_id, and client_secret.
5. In response, the authorization server returns the first pair of tokens:
   • access_token — the parameter required for working with the REST API
   • refresh_token — the token needed later to extend the access_token

General Workflow with OAuthGeneral Workflow with OAuth

• A mass-market application or a local one is added and installed in its separate Bitrix24.
• Keys are requested from the remote server.
• The server redirects the browser to the URL registered by the application.
• The response is processed.
• All requests to the REST API are signed with the obtained key.

Full OAuth Authorization in Bitrix24Full OAuth Authorization in Bitrix24

The specific Bitrix24 acts as the data server and holder of user authorization. The authorization server, available at https://oauth.bitrix.info/, serves as the holder of application authorization.

The complete OAuth authorization scenario goes through several steps.

User Authorization in Bitrix24User Authorization in Bitrix24

The application requests the user’s Bitrix24 address and redirects them to a specially formed URL, for example:

https://portal.bitrix24.com/oauth/authorize/?
             client_id=app.573ad8a0346747.09223434
             &state=JJHgsdgfkdaslg7lbadsfg


URL parameters:

Required parameters are marked with *

• client_id — the application code obtained:
  • in the partner area when registering the application and valid for any Bitrix24
  • in a specific Bitrix24 in the case of a local application (will only be valid for this Bitrix24)
• state — an additional parameter that allows the application to pass arbitrary additional data between authorization steps

At this link, the user will see an authorization form. After authorization (or if there is an authorized session), if the application with the provided client_id is installed on the portal, the portal will return the user to the application's redirect_uri. If the application is not installed on the portal, the user will see an appropriate error message.

The result of successful user authorization should be the return of the user to the registered application address with additional parameters:

https://www.applicationhost.com/application/?
             code=avmocpghblyi01m3h42bljvqtyd19sw1
             &state=JJHgsdgfkdaslg7lbadsfg
             &domain=portal.bitrix24.com
             &member_id=a223c6b3710f85df22e9377d6c4f7553
             &scope=crm%2Centity%2Cim%2Ctask
             &server_domain=oauth.bitrix.info


Parameters:

• code — the first authorization code, see below
• state — the value passed in the first request
• domain — the portal domain where authorization is taking place
• member_id — the unique identifier of the portal where authorization is taking place
• scope — a comma-separated list of access permissions to the REST API that the portal grants to the application
• server_domain — the domain of the authorization server

Application AuthorizationApplication Authorization

Having obtained the first authorization code code in one way or another, the application must proceed to the second step of OAuth authorization and make a hidden request of the following form:

https://oauth.bitrix.info/oauth/token/?
            grant_type=authorization_code
            &client_id=app.573ad8a0346747.09223434
            &client_secret=LJSl0lNB76B5YY6u0YVQ3AW0DrVADcRTwVr4y99PXU1BWQybWK
            &code=avmocpghblyi01m3h42bljvqtyd19sw1


Parameters:

Required parameters are marked with *

• grant_type — a parameter indicating the type of authorization data to be validated. It should have the value authorization_code
• client_id — the application code obtained in the partner area when registering the application or on the portal in the case of a local application
• client_secret — the secret key of the application, obtained in the partner area when registering the application or on the portal in the case of a local application
• code — the value of the code parameter passed to the application at the end of the previous step

In response to such a request, the application will receive a json with the following content:

GET /oauth/token/

        HTTP/1.1 200 OK
        Content-Type: application/json

        {
            "access_token": "s1morf609228iwyjjpvfv6wsvuja4p8u",
            "client_endpoint": "https://portal.bitrix24.com/rest/",
            "domain": "oauth.bitrix.info",
            "expires_in": 3600,
            "member_id": "a223c6b3710f85df22e9377d6c4f7553",
            "refresh_token": "4f9k4jpmg13usmybzuqknt2v9fh0q6rl",
            "scope": "app",
            "server_endpoint": "https://oauth.bitrix.info/rest/",
            "status": "T"
        }


Significant parameters:

• access_token — the main authorization token required for accessing the REST API
• refresh_token — an additional authorization token used to extend the saved authorization
• client_endpoint — the address of the portal's REST interface
• server_endpoint — the address of the server's REST interface
• status — the status of the application on the portal

At this stage, the application may also receive an authorization error. For example, if the trial or paid period has expired.

{
            "error": "PAYMENT_REQUIRED",
            "error_description": "Payment required"
        }
