Static Local Application

A static local application is an HTML page with JavaScript that Bitrix24 opens in a frame within its interface. This option is suitable when the application needs an interface in Bitrix24 but does not need its own server.

If you need to run code on your own server, store secrets there, or receive Bitrix24 events, choose a server-side local application with a user interface.

Prepare the ArchivePrepare the Archive

Place the index.html file in the root of the ZIP archive. This file serves as the application's main page. You can add CSS, JavaScript, images, and other files to the archive and connect them to index.html using relative paths.

If setup is required before the first launch, add an install.html file to the archive root. Bitrix24 will open it as an installation wizard.

The following index.html example retrieves the current user's name using user.current:

<!doctype html>
        <html lang="en">
        <head>
            <meta charset="utf-8">
            <title>Current User</title>
            <script src="//api.bitrix24.com/api/v1"></script>
        </head>
        <body>
            <p id="user-name">Loading...</p>

            <script>
                BX24.init(() => {
                    BX24.callMethod('user.current', {}, (result) => {
                        const output = document.getElementById('user-name');

                        if (result.error())
                        {
                            output.textContent = 'Failed to retrieve user data';
                            console.error(result.error());
                            return;
                        }

                        const user = result.data();
                        output.textContent = [user.NAME, user.LAST_NAME]
                            .filter(Boolean)
                            .join(' ');
                    });
                });
            </script>
        </body>
        </html>


The example uses BX24.js. When the application opens in a frame, the library retrieves authorization data from the Bitrix24 environment and uses it in REST API calls. Therefore, you do not need to store a webhook, client_secret, or OAuth tokens in the static application code.

Create the ApplicationCreate the Application

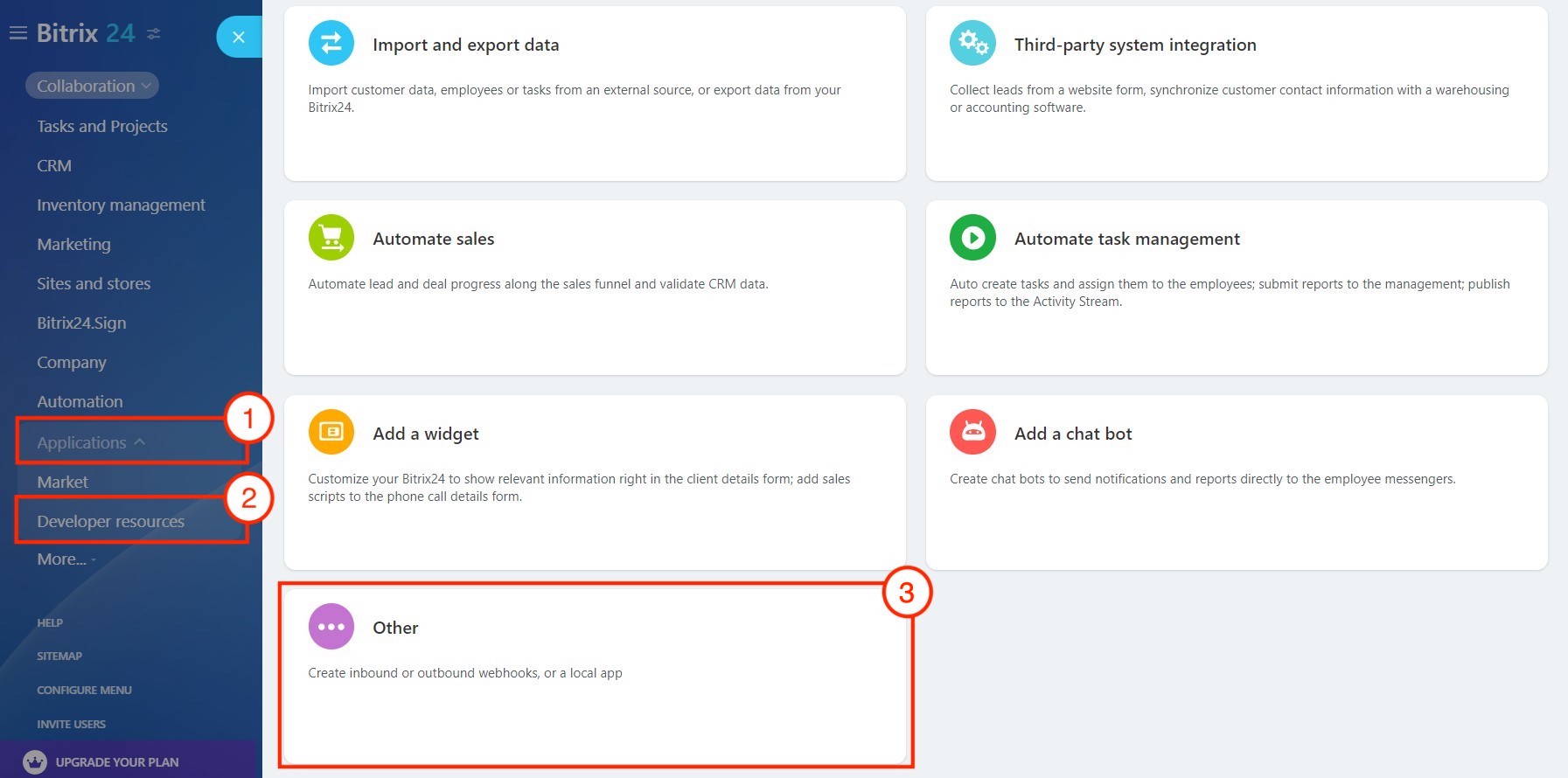

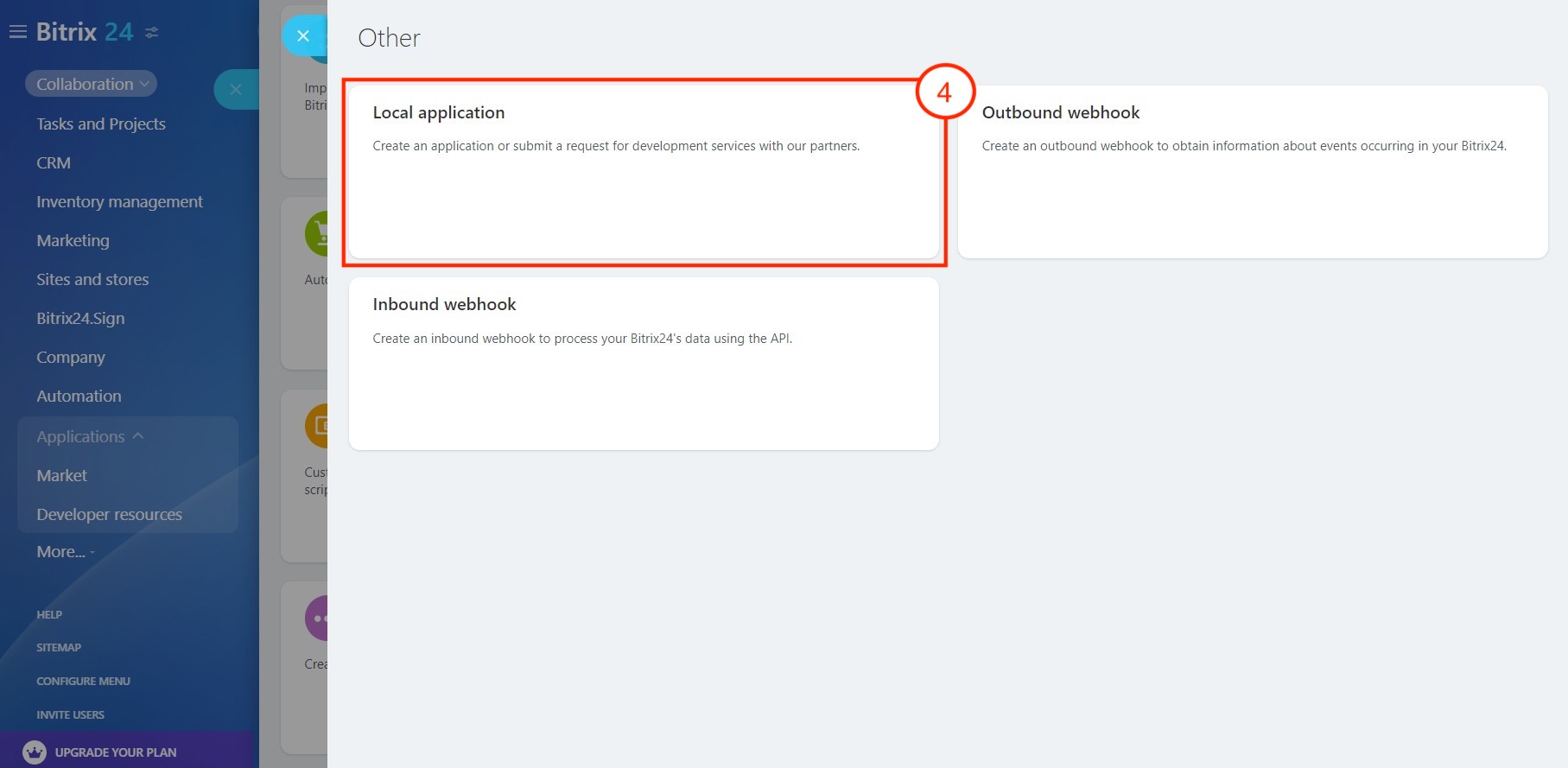

1. Open Developer resources > Other > Local application. If the Local application item is missing, ask the administrator to configure access to application creation

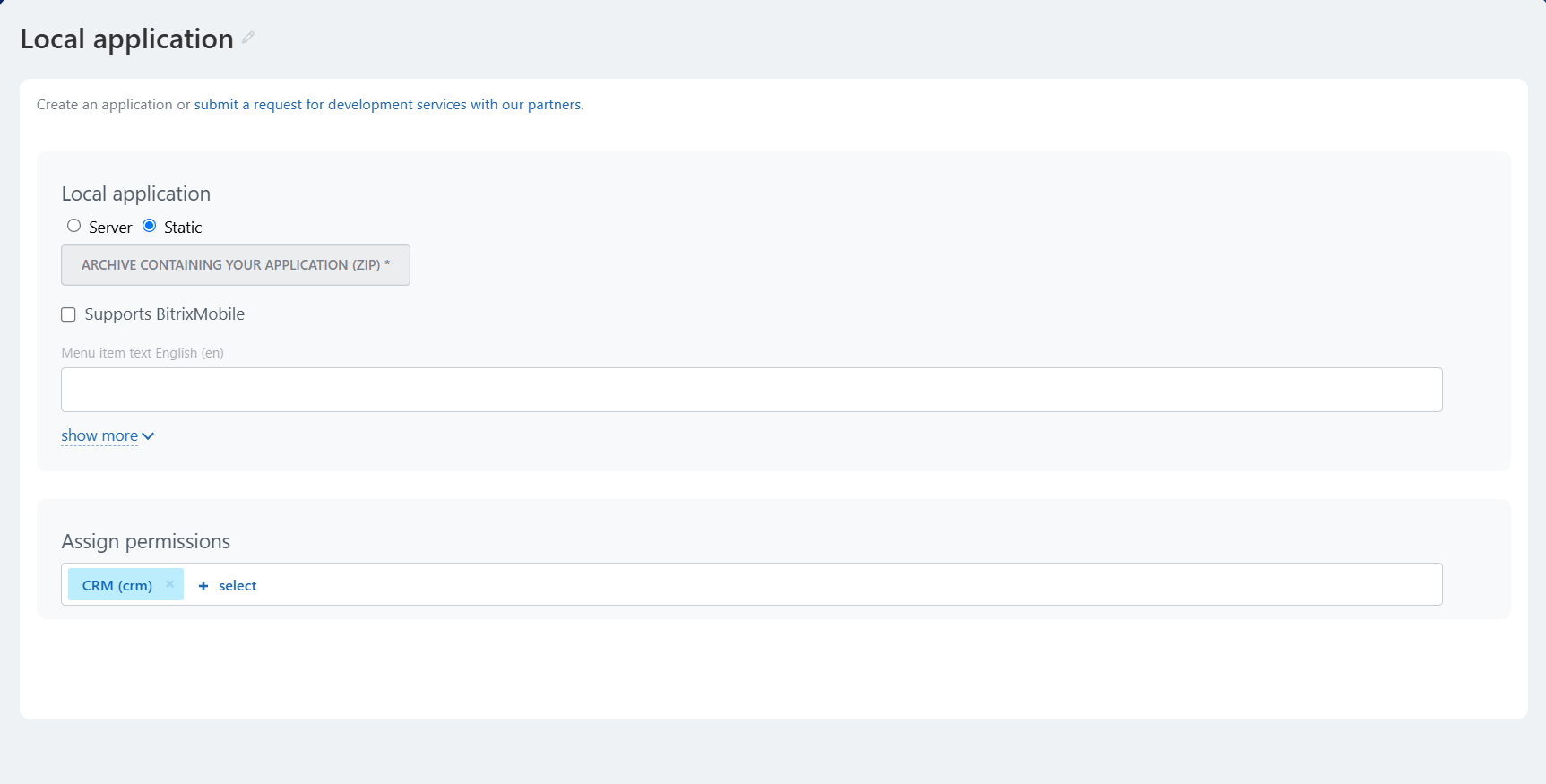

2. Select Static


3. Upload the application ZIP archive in the Archive containing your application (zip) field

4. Enable Supports BitrixMobile if the application must work in the Bitrix24 mobile app

5. Fill in the Menu item text English (en) field

6. In the Assign permissions section, select the permissions required for the application's REST API calls

7. Click Create

After creation, the application appears in Developer resources > Integrations.

REST API calls are made on behalf of the employee who opened the application. Method availability is limited by the employee's permissions and the permissions selected when creating the application.

Add a WidgetAdd a Widget

A static application can embed its pages in the Bitrix24 interface as widgets — for example, add a tab to the company card. The widget handler is an HTML page from the same archive.

As an example, add a contacts.html page to the archive and register it as a company card tab CRM_COMPANY_DETAIL_TAB. When creating the application, select the crm and placement permissions.

Handler AddressHandler Address

Bitrix24 places all archive files in a single folder and retains only the addresses of index.html and install.html in the application settings. Build the address of any other page relative to the page that is currently open:

const handler = new URL('contacts.html', location.href).href.split('?')[0];
        // https://apps-b1234567.bitrix24-cdn.com/b1234567/app_local/899dc6eb61c4c5a88228db3e189b83cd/contacts.html


The domain and the folder path depend on the Bitrix24 account, so do not hardcode the address.

Registering the WidgetRegistering the Widget

Register the tab with the method placement.bind from the index.html code. The call succeeds if the application was opened by the Bitrix24 administrator or by an employee with the Who can create apps for everyone permission — how to grant it is described in How to Configure Access to Application Creation. For other employees, the method returns the ACCESS_DENIED error.

BX24.init(() => {
            BX24.callMethod('placement.bind', {
                PLACEMENT: 'CRM_COMPANY_DETAIL_TAB',
                HANDLER: new URL('contacts.html', location.href).href.split('?')[0],
                TITLE: 'Contacts',
            }, (result) => {
                if (result.error())
                {
                    console.error(result.error());
                }
            });
        });


Registering the same address for the same placement again returns the Handler already binded error. To check which widgets are already registered, call placement.get.

Widget DataWidget Data

The handler page retrieves the placement code and its parameters with the method BX24.placement.info after BX24.init. A static page cannot read them from the request body.

<!doctype html>
        <html lang="en">
        <head>
            <meta charset="utf-8">
            <script src="//api.bitrix24.com/api/v1"></script>
        </head>
        <body>
            <p id="company">Loading...</p>

            <script>
                BX24.init(() => {
                    const info = BX24.placement.info();
                    // {"placement": "CRM_COMPANY_DETAIL_TAB", "options": {"ID": "1", ...}}
                    document.getElementById('company').textContent = 'Company ID: ' + info.options.ID;
                });
            </script>
        </body>
        </html>


Replacing the ArchiveReplacing the Archive

When you replace the archive, Bitrix24 moves the files to a new folder and deletes the old one. The addresses of index.html and install.html in the application settings are updated automatically. The widget addresses registered with placement.bind stay the same and point to deleted files, so the tab in the card shows a 404 error.

After every archive replacement, register the widgets again:

1. Retrieve the list of widgets with the method placement.get
2. Remove the widgets with old addresses with the method placement.unbind
3. Register them again with placement.bind using addresses from the new folder

install.html does not open after the archive is replaced, because the application is already installed. It is therefore convenient to run the check in index.html every time it opens: if a widget address does not start with the address of the current folder new URL('./', location.href), register the widget again.

To replace the archive, open the application for editing in the Developer resources > Integrations list. If the form opens with the Server type selected, switch it to Static — the archive upload field appears.
