How to Create a Chatbot for Open Channels

Scope: imbot, imopenlines

Who can execute the methods: to complete the whole scenario, the application needs the imbot and imopenlines permissions

imbot.v2.Bot.register - authenticated user

imopenlines.bot.session.operator - any user

imopenlines.bot.session.transfer and imopenlines.bot.session.finish - application user with a registered chatbot

If you are developing integrations for Bitrix24 using AI tools (Codex, Claude Code, Cursor), connect the MCP server so that the assistant can utilize the official REST documentation.

An Open Channels chatbot receives customer requests, sends the first response, and transfers the conversation to an operator when needed. For this scenario, use the current chatbots 2.0 platform.

The scenario consists of three steps.

Register the bot using imbot.v2.Bot.register
In the ONIMBOTV2MESSAGEADD and ONIMBOTV2JOINCHAT event handlers, check that the event came from an Open Channel
Manage the conversation using imopenlines.bot.session.*

Prepare Data

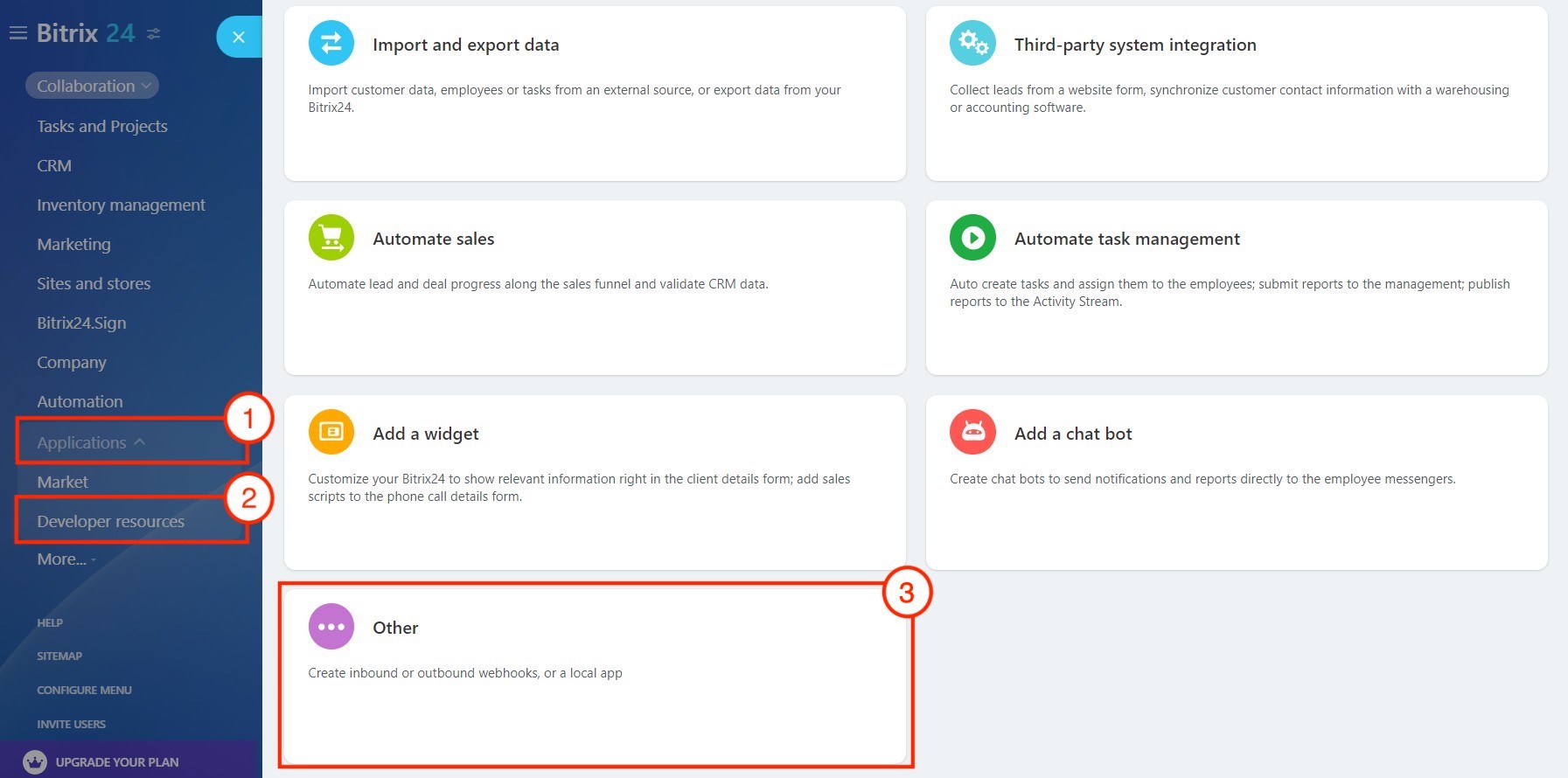

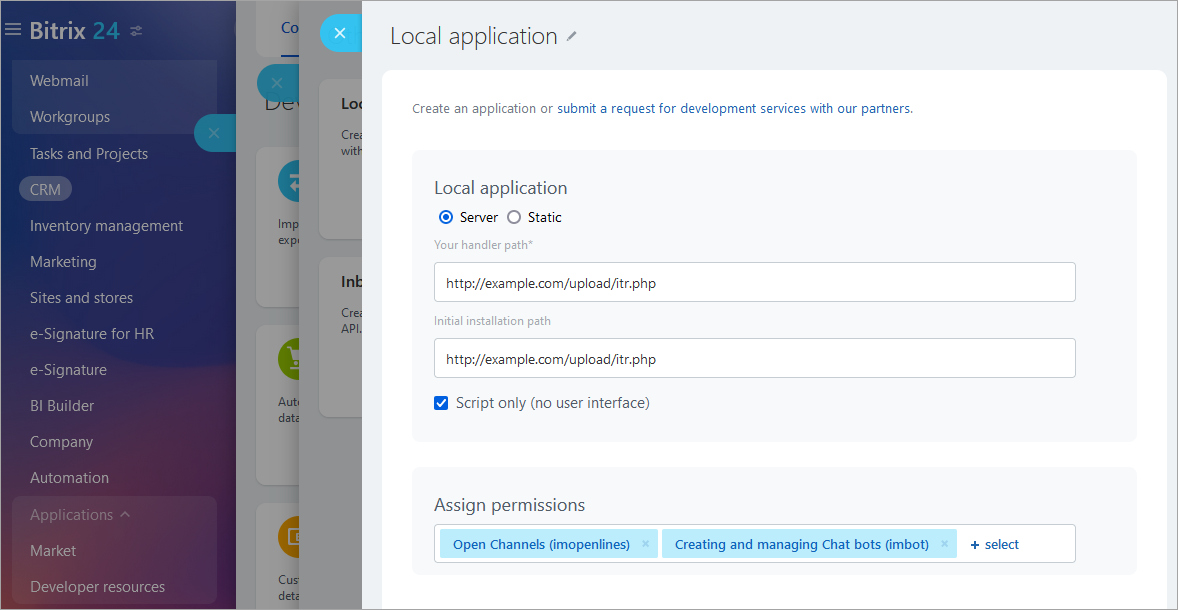

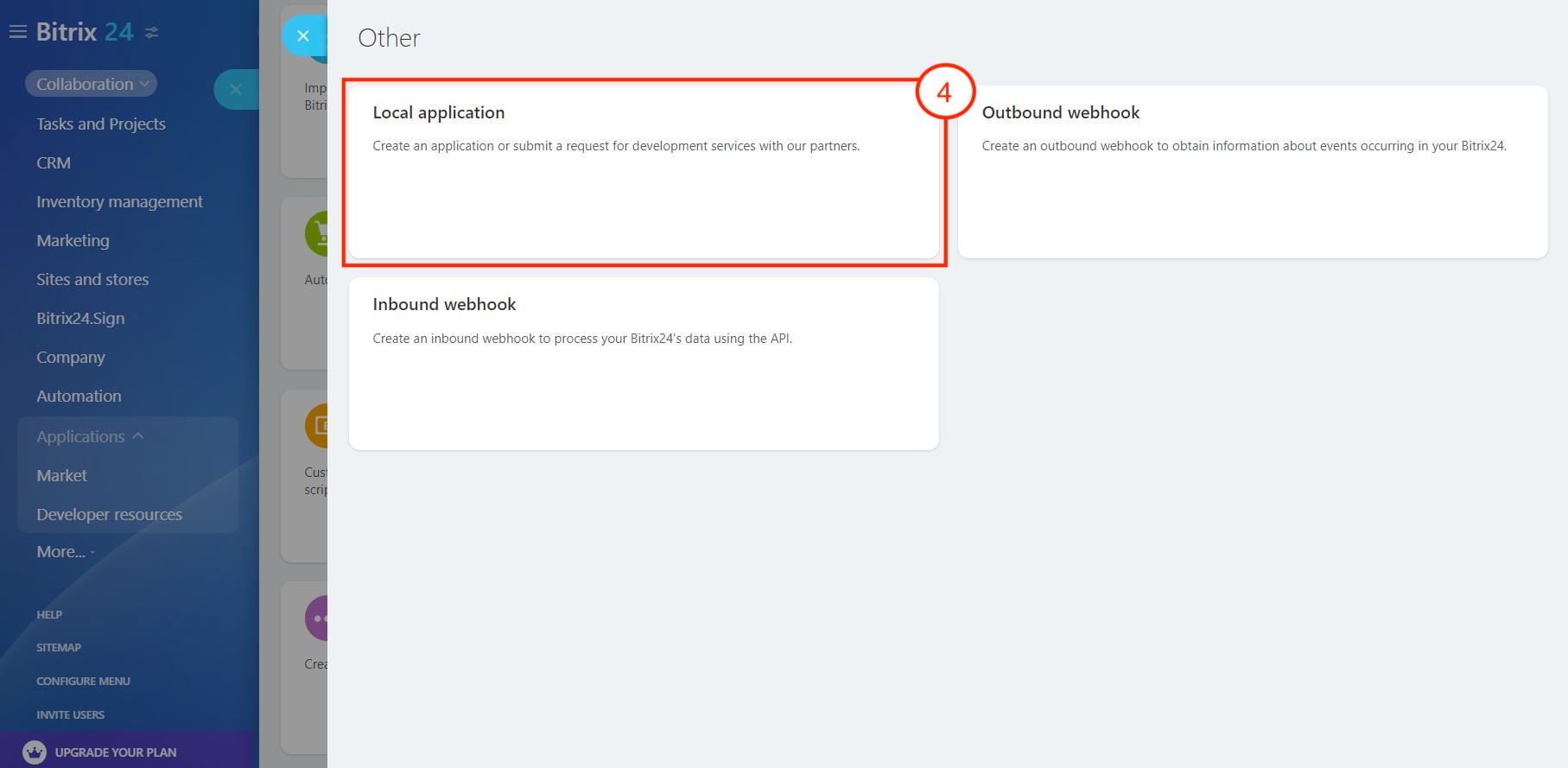

Before you start, create an application or an incoming webhook with the imbot and imopenlines permissions.

Prepare the values:

HANDLER_URL - public HTTPS URL of the event handler
botToken - bot token up to 40 characters long, if you use an incoming webhook
chatId - Open Channel chat ID from the data.message.chatId or data.chat.id event field
operatorId - ID of the employee to transfer the conversation to

For incoming webhook examples, save the webhook URL in the B24_WEBHOOK_URL environment variable and the bot token in BOT_TOKEN. For the Python example, split the webhook URL into the B24_DOMAIN domain and the B24_WEBHOOK_TOKEN path in the form 1/xxxxxxxxxxxxxxxx.

Initialize the SDK before the first call.

PHP

Python

// npm install @bitrix24/b24jssdk
        import { B24Hook } from '@bitrix24/b24jssdk'

        const $b24 = B24Hook.fromWebhookUrl(process.env.B24_WEBHOOK_URL)
        const botToken = process.env.BOT_TOKEN

// composer require bitrix24/b24phpsdk:"^3.0"
        require_once 'vendor/autoload.php';

        use Bitrix24\SDK\Services\ServiceBuilderFactory;
        use Monolog\Handler\StreamHandler;
        use Monolog\Logger;
        use Symfony\Component\EventDispatcher\EventDispatcher;

        $log = new Logger('b24');
        $log->pushHandler(new StreamHandler('php://stdout'));

        $b24 = (new ServiceBuilderFactory(new EventDispatcher(), $log))
            ->initFromWebhook(getenv('B24_WEBHOOK_URL'));

        $botToken = getenv('BOT_TOKEN');

# pip install b24pysdk
        import os
        from b24pysdk import BitrixWebhook, Client

        token = BitrixWebhook(
            domain=os.environ["B24_DOMAIN"],
            webhook_token=os.environ["B24_WEBHOOK_TOKEN"],
        )
        client = Client(token)
        bot_token = os.environ["BOT_TOKEN"]

1. Register the Bot for Open Channels

In imbot.v2.Bot.register, bot parameters are passed in the fields object.

For hybrid mode, where the bot works in group chats, private chats, and Open Channels, pass fields.type = bot and fields.isSupportOpenline = true. If the bot is needed only for Open Channels, pass fields.type = openline.

How to Use Examples in Documentation

PHP

Python

// There is no typed wrapper for imbot.v2, so the method is called directly through the SDK core.
        await $b24.actions.v2.call.make({
            method: 'imbot.v2.Bot.register',
            params: {
                fields: {
                    code: 'open_line_bot',
                    botToken: botToken,
                    type: 'bot',
                    isSupportOpenline: true,
                    eventMode: 'webhook',
                    webhookUrl: HANDLER_URL,
                    properties: {
                        name: 'Support line',
                        workPosition: 'First line',
                        color: 'GREEN',
                    },
                },
            },
            requestId: 'imbot-v2-bot-register-ol',
        })

// There is no typed wrapper for imbot.v2, so the method is called directly through the SDK core.
        $b24->core->call('imbot.v2.Bot.register', [
            'fields' => [
                'code' => 'open_line_bot',
                'botToken' => $botToken,
                'type' => 'bot',
                'isSupportOpenline' => true,
                'eventMode' => 'webhook',
                'webhookUrl' => $handlerUrl,
                'properties' => [
                    'name' => 'Support line',
                    'workPosition' => 'First line',
                    'color' => 'GREEN',
                ],
            ],
        ]);

# There is no typed wrapper for imbot.v2, so the method is called directly through the SDK core.
        token.call_method(
            "imbot.v2.Bot.register",
            {
                "fields": {
                    "code": "open_line_bot",
                    "botToken": bot_token,
                    "type": "bot",
                    "isSupportOpenline": True,
                    "eventMode": "webhook",
                    "webhookUrl": HANDLER_URL,
                    "properties": {
                        "name": "Support line",
                        "workPosition": "First line",
                        "color": "GREEN",
                    },
                }
            },
        )

In a successful response, save result.bot.id. You will need it if the application works with several bots.

{
            "result": {
                "bot": {
                    "id": 456,
                    "code": "open_line_bot",
                    "type": "bot",
                    "isSupportOpenline": true,
                    "eventMode": "webhook"
                }
            }
        }

2. Check the Chat Type in the Handler

In ONIMBOTV2MESSAGEADD and ONIMBOTV2JOINCHAT events, data arrives in the V2 format: field names use camelCase, and chat data is located in the data.chat object.

To process Open Channels messages separately, check the data.chat.entityType field. For Open Channels, it equals LINES.

Save data.message.chatId from the event to the chatId variable. This value is passed to the CHAT_ID parameter of session management methods.

{
            "event": "ONIMBOTV2MESSAGEADD",
            "data": {
                "message": {
                    "chatId": 112
                },
                "chat": {
                    "id": 112,
                    "entityType": "LINES"
                }
            }
        }

PHP

Python

if (event.data.chat.entityType === 'LINES') {
            const chatId = event.data.message.chatId;
            // Message from an Open Channel
        }

if (($event['data']['chat']['entityType'] ?? '') === 'LINES') {
            $chatId = (int)$event['data']['message']['chatId'];
            // Message from an Open Channel
        }

if event["data"]["chat"].get("entityType") == "LINES":
            chat_id = event["data"]["message"]["chatId"]
            # Message from an Open Channel
            ...

3. Manage the Session

With the imopenlines permission, the following commands for conversation management are available:

imopenlines.bot.session.operator - transfer to an available operator
imopenlines.bot.session.transfer - transfer to a specific operator
imopenlines.bot.session.finish - finish the session

When calling imopenlines.bot.session.transfer and imopenlines.bot.session.finish, pass the same CLIENT_ID that was used when registering the bot. If the bot is registered through imbot.v2.Bot.register with fields.botToken, pass this value in CLIENT_ID.

PHP

Python

// Transfer conversation to an available operator
        await $b24.actions.v2.call.make({
            method: 'imopenlines.bot.session.operator',
            params: { CHAT_ID: chatId },
            requestId: 'session-operator',
        })

        // Transfer to a specific operator
        await $b24.actions.v2.call.make({
            method: 'imopenlines.bot.session.transfer',
            params: { CHAT_ID: chatId, USER_ID: operatorId, CLIENT_ID: botToken },
            requestId: 'session-transfer',
        })

        // End session
        await $b24.actions.v2.call.make({
            method: 'imopenlines.bot.session.finish',
            params: { CHAT_ID: chatId, CLIENT_ID: botToken },
            requestId: 'session-finish',
        })

$b24->core->call('imopenlines.bot.session.operator', ['CHAT_ID' => $chatId]);
        $b24->core->call('imopenlines.bot.session.transfer', [
            'CHAT_ID' => $chatId,
            'USER_ID' => $operatorId,
            'CLIENT_ID' => $botToken,
        ]);
        $b24->core->call('imopenlines.bot.session.finish', [
            'CHAT_ID' => $chatId,
            'CLIENT_ID' => $botToken,
        ]);

client.imopenlines.bot.session.operator(chat_id=chat_id).response
        token.call_method(
            "imopenlines.bot.session.transfer",
            {"CHAT_ID": chat_id, "USER_ID": operator_id, "CLIENT_ID": bot_token},
        )
        token.call_method(
            "imopenlines.bot.session.finish",
            {"CHAT_ID": chat_id, "CLIENT_ID": bot_token},
        )

Successful response for each session management method:

{
            "result": true
        }

Check the Result

Send a message to the connected Open Channel. The handler should receive ONIMBOTV2MESSAGEADD with data.chat.entityType = LINES.

To pass the conversation to an operator, call imopenlines.bot.session.operator or imopenlines.bot.session.transfer with CHAT_ID from the event. A successful response from these methods is true.

Errors and Diagnostics

If a method returns an error, check the request data and application permissions.

BOT_TOKEN_NOT_SPECIFIED - fields.botToken was not passed when authorizing through a webhook
BOT_INVALID_TYPE - fields.type contains a value outside the list of allowed types
BOT_INVALID_EVENT_MODE - fields.eventMode contains a value other than fetch or webhook
BOT_WEBHOOK_URL_REQUIRED - fields.webhookUrl was not passed for webhook mode
CHAT_ID_EMPTY - CHAT_ID was not passed or a value <= 0 was passed
BOT_ID_ERROR - no registered chatbot was found in the application

Important Notes

The imbot.* methods and events are deprecated. Use imbot.v2.* for new bots
A bot registered through V1 receives ONIMBOT* events; a bot registered through V2 receives ONIMBOTV2* events
For webhook mode, specify a public HTTPS URL in fields.webhookUrl
Session management requires the imopenlines scope
