Server-Side Local Application with User Interface

A server-side local application with a user interface runs its code on your server and displays its page in a frame inside Bitrix24. Together with that page, the application receives the tokens of the user who opened it.

The application works only in the Bitrix24 where it was created. If the solution has to be installed on different Bitrix24 accounts, develop a mass-market application.

Other types of local applications and the criteria for choosing between them are described in the article Local Applications.

How Authorization WorksHow Authorization Works

An application in a frame uses a simplified OAuth 2.0 flow: there is no need to request tokens separately, Bitrix24 passes them every time the application opens.

1. The user launches the application in the Bitrix24 interface.
2. Bitrix24 sends a POST request to the handler address and passes the authorization data. The handler is the application page that you specified in the Your handler path field.
3. The handler compares the incoming APPLICATION_TOKEN with the retained value.
4. The application substitutes AUTH_ID into REST API requests and calls methods on behalf of the user who opened the application.

The comparison in step three is a requirement for your code. The procedure is described in the section How to Verify the Request Source.

Main request parameters:

The complete composition of the data is covered in the article Simplified Method for Obtaining OAuth 2.0 Tokens, the token renewal procedure — in the article OAuth 2.0 token automatic renewal.

The tokens arrive only in the request with which Bitrix24 opens the page. Subsequent requests from the page, including AJAX ones, no longer carry them, so retain the tokens on your side — in the session, for example. You can renew the tokens on the page itself by calling BX24.refreshAuth from the BX24 JS SDK, but it is still your code that has to pass them to the server.

Bitrix24 passes the same set of parameters to the initial installation address as well.

When to Choose This Type of ApplicationWhen to Choose This Type of Application

A server-side local application with a user interface is a good fit if you need to:

• display your own page or a widget inside Bitrix24 and process the data on your server
• keep the application secret key and the tokens on the server rather than in code that is loaded into the browser
• receive Bitrix24 events at your event handler

Choose a different type of application if:

• you have no server of your own but need an interface — Static Local Application will do. Such an application runs in the browser and does not receive events
• the application works in the background without an interface and on behalf of a single user — Server-Side Local Application Without a User Interface will do
• an external system only calls methods or receives events, and no interface inside Bitrix24 is needed — inbound and outbound webhooks will do

What You Need to PrepareWhat You Need to Prepare

• REST API access. A local application works only if Bitrix24 has access to the REST API.
• Permission to create applications. An application can be created by a Bitrix24 administrator or by an employee who has been granted such a permission. If the Local application item is missing from the interface, ask the administrator to configure access to application creation.
• Web server. The example is written in PHP, so you need a server with PHP, the cURL module, and a valid SSL certificate. The application pages must be available over HTTPS before you add the application to Bitrix24: their addresses are specified in the creation form itself. Server requirements are described in the article CRest PHP SDK: Installation and First Call.
• Permission to embed. Bitrix24 opens the application page in a frame, so the server must not prohibit embedding with the X-Frame-Options and Content-Security-Policy headers. How to allow embedding for your Bitrix24 address is described in the article How to Fix the "Site Cannot Be Reached" Error When Opening an Application.

What the Example ContainsWhat the Example Contains

The ready-made example is the "Full Name" application. It prints two blocks: the data of the request with which Bitrix24 opened the page, including the authorization data, and the details of the user who opened the application. These details are returned by the user.current method — the application calls it with the tokens that arrived together with the page.

The archive consists of three parts:

• CRest SDK — a PHP library for calling REST API methods. Its distribution includes settings.php with the application settings, install.php for the initial installation, and checkserver.php for checking the server
• modified CRest SDK — the crestcurrent.php file with a subclass that substitutes the tokens of the current user into requests
• index.php — the application page with the example code; in the archive this file already replaces the standard index.php from the CRest distribution

Download archive

The subclass takes the tokens directly from the request with which Bitrix24 opened the page. That is why user.current returns the data of the current user. The index.php code:

<?php

        require_once __DIR__ . '/crestcurrent.php';

        echo '<pre>';
            print_r($_REQUEST);
        echo '</pre>';

        $result = CRestCurrent::call('user.current');

        echo '<pre>';
            print_r($result);
        echo '</pre>';


The example is built on CRest, but the application type itself is tied neither to this library nor to PHP. For PHP there is also B24PhpSDK. It wraps calls as PHP classes and methods but requires Composer and PHP 8.2 or newer. CRest is connected with files from the archive. The remaining libraries are listed in the SDK overview.

How to Create an ApplicationHow to Create an Application

The example follows the scenario with an installation wizard: the application has a separate initial installation page on which CRest retains the settings. The scenario itself is described in the article Installation Wizard for Local Application.

Bitrix24 issues the application ID and the secret key only after the form is saved, and install.php will not retain the settings without them. Hence the order: first create the application, then fill in settings.php and reinstall the application.

1. Place the files from the archive on your server. Note the addresses of the index.php and install.php pages: they are specified in the form.

2. Open checkserver.php in a browser at your server address. The script verifies that the cURL module is available and that CRest can retain its files. If the check fails, resolve the issues reported by the script before moving on to the form: CRest will not retain the settings without cURL and without write permission.

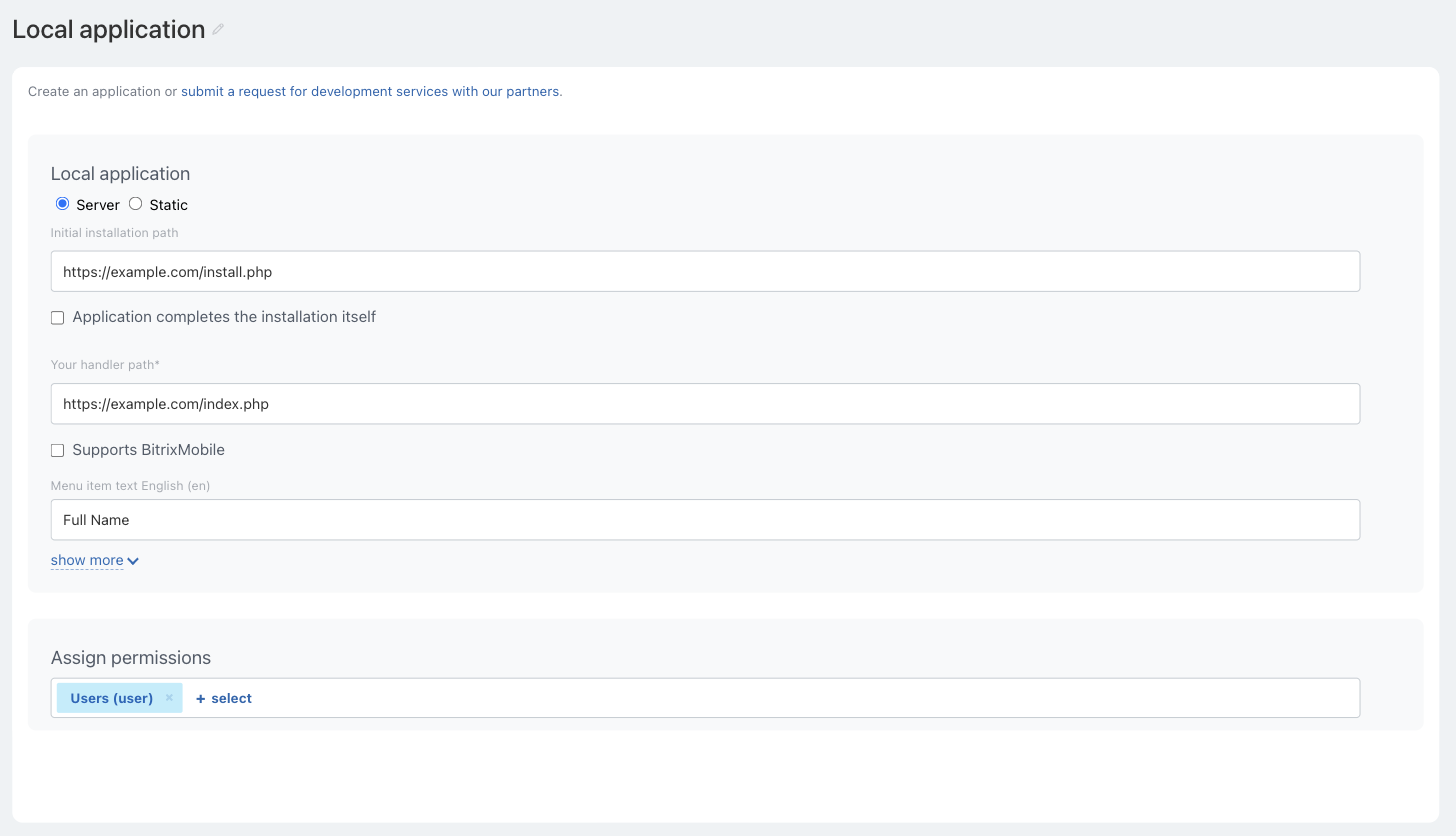

3. Open the local application form: Applications > Developer resources, the Common use cases tab, then Other > Local application.





4. Select the Server option — it opens the fields for the addresses of the pages on your server. The Static option expects an archive with a page — see the article Static Local Application.

5. Specify the addresses of the pages on your server: in the Initial installation path field — the address of install.php, in the Your handler path field — the address of index.php. Bitrix24 contacts the first address when installing the application and opens the application in a frame at the second one.

6. Fill in Menu item text English (en) — it is how the application is found in the Bitrix24 interface. In the example it is "Full Name". Names in other languages are filled in if the application is used not only in English.

7. Select the application scopes in the Assign permissions block. Any of the user scopes will do for the example: Users — user, Users (basic) — user_basic, Users (minimum) — user_brief. The selected scope determines which fields user.current returns. The remaining scopes are listed in the article Available Scopes in Bitrix24.



8. Save the form. The application appears in the Applications > Developer resources > Integrations list.



9. Open the application. Bitrix24 displays the initial installation page — this is how you check that the install.php address is available. The settings are not retained at this step. This page is opened by a Bitrix24 administrator or by a user with the permission to install applications — everyone else sees an error message instead.

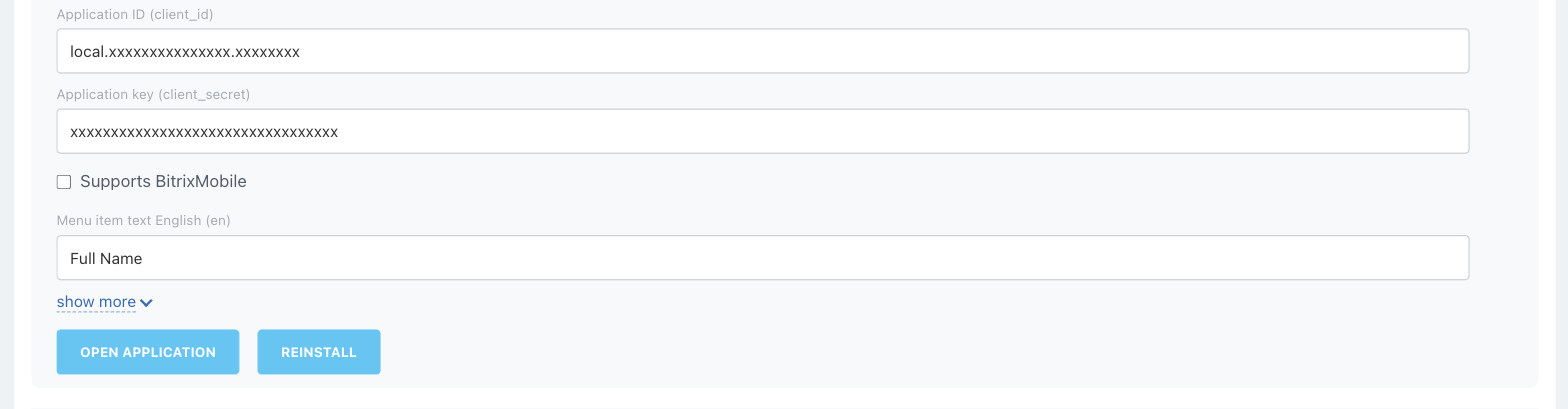

10. Open the application card. After saving, it contains the Application ID (client_id) and Application key (client_secret) fields. Copy these values into the C_REST_CLIENT_ID and C_REST_CLIENT_SECRET constants of the settings.php file and upload the modified file to the server.



11. Click Reinstall in the application card and open the application once again. The button is available to a Bitrix24 administrator only. Now install.php runs with the constants filled in and creates settings.json. Without this file, CRest cannot call a method.

The installation scenarios of a local application and the differences between them are described in the article Overview of Installing Local Applications.

How to Check the ResultHow to Check the Result

Find the "Full Name" application in the left menu or in the More menu within the Applications section and launch it. The application opens in a frame and prints two blocks.

The first block is all the data of the request with which Bitrix24 opened the page. $_REQUEST brings together the parameters from the query string and from the request body, so the block contains both the authorization data and the service data:

Array
        (
            [DOMAIN] => example.bitrix24.com
            [PROTOCOL] => 1
            [LANG] => en
            [APP_SID] => 0f5a2e9b6c1d4a8e7f30b21c5d9e4a6b
            [AUTH_ID] => a1b2c3d4e5f60718293a4b5c6d7e8f90
            [AUTH_EXPIRES] => 3600
            [REFRESH_ID] => 90f8e7d6c5b4a3928170f6e5d4c3b2a1
            [SERVER_ENDPOINT] => https://oauth.bitrix.info/rest/
            [APPLICATION_TOKEN] => 7d1e4c02fa93b586ce4710d2f8b3a9c5
            [APPLICATION_SCOPE] => user
            [member_id] => 4c8f2b91d7e3a56f0b1c9d8e7a6f5b43
            [status] => L
            [PLACEMENT] => DEFAULT
        )


The main parameters are described in the section How Authorization Works, the complete composition of the data — in the article Simplified Method for Obtaining OAuth 2.0 Tokens.

The second block is the result of the user.current call:

Array
        (
            [result] => Array
                (
                    [ID] => 1
                    [ACTIVE] => 1
                    [NAME] => Klaus
                    [LAST_NAME] => Weber
                    [EMAIL] => klaus@example.com
                    [LAST_LOGIN] => 2026-09-08T12:51:07+02:00
                    [DATE_REGISTER] => 2020-04-20T02:00:00+02:00
                    [TIME_ZONE] => Europe/Berlin
                    [IS_ONLINE] => Y
                    [WORK_POSITION] => Manager
                    [UF_DEPARTMENT] => Array
                        (
                            [0] => 1
                        )

                )

            [time] => Array
                (
                    [start] => 1788867501
                    [finish] => 1788867502.0294
                    [duration] => 1.0293660163879
                    [processing] => 0
                    [date_start] => 2026-09-08T13:38:21+02:00
                    [date_finish] => 2026-09-08T13:38:22+02:00
                )

        )


The user data is returned in the result key, while time is added to the response by the REST API itself. The set of fields depends on the selected scope and on the custom fields of Bitrix24. Custom fields arrive in keys with the UF_ prefix. The complete list of fields is described in the article Get information about the current user user.current.

What to Do If Errors OccurWhat to Do If Errors Occur

• "Site Cannot Be Reached". The application server prohibits embedding its page in a frame. Examine the response headers following the article How to Fix the "Site Cannot Be Reached" Error When Opening an Application.
• no_install_app. At least one of the access_token, domain, refresh_token, application_token, client_endpoint values is empty in the CRest settings. The first reason is that the page was opened directly at the server address, without a POST request from Bitrix24, so there was nothing to put into the settings. The second is that the application was not reinstalled after settings.php had been filled in, so the settings.json file was not created.
• insufficient_scope. The application has not been granted the scope of the method. Add the required scope in the application card.
• expired_token. More than an hour has passed since the page was opened, and AUTH_ID has expired. Obtain a new pair of tokens with REFRESH_ID — the procedure is described in the article OAuth 2.0 token automatic renewal.
• The installation page opens every time instead of the application. The initial installation script did not call BX24.installFinish — what happens in that case is covered in the section How to Create an Application.

Permissions and SecurityPermissions and Security

• User permissions. The tokens are issued for a specific user, so a call is limited by their permissions in Bitrix24: the same call returns a different result for different users. The difference from the behavior of the base CRest is covered in the section How Authorization Works.
• Application scopes. The set of scopes is selected at creation and changed in the application card.
• Secrets and tokens. Retain the application ID, the secret key, AUTH_ID, and REFRESH_ID on your server. Do not place them in client-side code that is loaded into the browser, do not retain them in a repository, do not write them to logs, and do not pass them to third parties.

How to Verify the Request SourceHow to Verify the Request Source

The handler address is available from the external network: anyone, not only Bitrix24, can open the application page. The verification works with two APPLICATION_TOKEN values:

• the reference value that the application has to retain at installation — in the install.php script or in the handler of the ONAPPINSTALL event. For a local application this value stays the same until the secret key changes
• the current value that Bitrix24 passes in the body of every request with which it opens the page

Compare these values before working with the tokens and reject the request if they do not match.

In the CRest distribution, install.php does not retain the reference value, and the library writes the APP_SID value into the application_token setting. A comparison with this setting will not work, because APP_SID is new every time. To make the verification work, set up your own storage:

1. Retain the APPLICATION_TOKEN from the request in install.php — in your own table or in a file next to the application, for example.
2. On the application page, compare the retained value with the APPLICATION_TOKEN from the incoming request and respond with code 403 if they do not match.

The install.php address is available from the external network as well. Keep the reference value in a place that is not reachable from outside and do not overwrite the retained value on every request to the installation page.

The application event handlers verify the source in the same way but take the value from the auth.application_token parameter and look up the retained reference value by auth.member_id — the Bitrix24 identifier. The token storage rules are described in the article Security in Handlers.
