Server-Side Local Application Without a User Interface

A server-side local application without a user interface runs its code on your server and does not display a page of its own inside Bitrix24. There is no item for such an application in the left menu — it is launched not by a user but by your code: a scheduler, an external service, or an event handler.

The application works on behalf of the user who installed it. It receives the tokens once, at installation, retains them on its side, and renews them itself.

The application works only in the Bitrix24 where it was created. If the solution has to be installed on different Bitrix24 accounts, develop a mass-market application.

Other types of local applications and the criteria for choosing between them are described in the article Local Applications.

How Authorization WorksHow Authorization Works

Bitrix24 does not open a page of such an application, so there is nowhere to pass the tokens to at every launch. The application implements the full OAuth 2.0 flow.

1. You save the local application form.
2. Bitrix24 sends a POST request to the address from the Initial installation path field and passes the ONAPPINSTALL event with the auth object.
3. The initial installation script retains the data from auth on your side.
4. The application substitutes access_token into REST API requests and calls methods.
5. The application exchanges refresh_token for a new pair of tokens and overwrites the retained values when access_token expires.

Main data of the auth object:

The order described above works when the Application completes the installation itself checkbox is off.

Bitrix24 sends the installation request from its own server, the browser does not take part in this request. That is why an application without an interface does not call BX24.installFinish — there is nowhere to call it from, and Bitrix24 considers the installation complete on its own.

The complete composition of the data is covered in the article Event After Successful Application Installation OnAppInstall, the token renewal procedure — in the article OAuth 2.0 token automatic renewal, the installation scenario — in the article Installation callback.

How to Receive EventsHow to Receive Events

Bitrix24 itself attaches the handlers to the initial installation address. The ONAPPINSTALL event arrives there when the Application completes the installation itself checkbox is off, the ONAPPUSERREADY event — regardless of the checkbox.

ONAPPUSERREADY arrives after Bitrix24 has created a system user for the application. The authorization of this technical account is passed in the data object, while auth of the same request carries the authorization of the user who installed the application. What exactly arrives in the event is described in the article Event for Creating an Application System User ONAPPUSERREADY.

The application subscribes to the remaining events itself, and they do not arrive at the address from the Your handler path field.

A subscription is created with the event.bind method. The event handler address is passed in the handler parameter, and the list of available events is collected in the section Events: Overview of Methods and Events. A convenient place to subscribe is the initial installation script, right after the tokens have been retained.

Verify the source of every request to the event handler — the procedure is described in the section How to Verify the Request Source.

The application may have no public address at all: it runs behind a firewall or starts on a schedule. In that case choose Offline Events — Bitrix24 does not call the handler but accumulates the changes in a queue, and the application picks them up with the event.offline.get method.

When to Choose This Type of ApplicationWhen to Choose This Type of Application

A server-side local application without a user interface is a good fit if you need to:

• synchronize Bitrix24 data with an external system on a schedule or upon a data change
• receive Bitrix24 events at your own handler and process them without user involvement
• display the interface on your own side — on your website or in your service — and access Bitrix24 from your server

Choose a different type of application if:

• you need a page of your own inside Bitrix24 — Server-Side Local Application with User Interface will do. Such an application receives the tokens every time it opens and works on behalf of the user who opened it
• you have no server of your own — Static Local Application will do. Such an application runs in the browser and does not receive events
• an external system only needs to call methods and receive events, with no token storage and no OAuth 2.0 — inbound and outbound webhooks will do

What You Need to PrepareWhat You Need to Prepare

• REST API access. A local application works only if Bitrix24 has access to the REST API.
• Permission to create applications. An application can be created by a Bitrix24 administrator or by a user who has been granted such a permission. If the Local application item is missing from the interface, ask the administrator to configure access to application creation.
• Web server. The example is written in PHP, so you need a server with PHP, the cURL module, and a valid SSL certificate. The address of the initial installation script must respond over HTTPS by the moment the form is saved. Server requirements are described in the article CRest PHP SDK: Installation and First Call.

What the Example ContainsWhat the Example Contains

The ready-made example prints the details of the user on whose behalf the application works. These details are returned by the profile method.

The archive is the CRest SDK distribution:

• crest.php — the library code
• settings.php — the application settings: the application ID and the secret key
• install.php — the initial installation script
• checkserver.php — the server configuration check
• index.php — the example page

Download archive

The install.php script parses the installation request. If the ONAPPINSTALL event with the auth object has arrived, the script retains the tokens in the settings.json file next to the library and outputs nothing in response.

The index.php page includes the library and calls the method:

<?php

        require_once __DIR__ . '/crest.php';

        $result = CRest::call('profile');

        echo '<pre>';
            print_r($result);
        echo '</pre>';


Token renewal is handled by CRest::call: having received the expired_token error, the library renews the pair of tokens itself and repeats the call.

The example is built on CRest, but the application type itself is tied neither to this library nor to PHP. For PHP there is also B24PhpSDK. It wraps calls as PHP classes and methods but requires Composer and PHP 8.2 or newer. CRest is connected with files from the archive. The remaining libraries are listed in the SDK overview.

How to Create an ApplicationHow to Create an Application

1. Place the files from the archive on your server. Note the addresses of install.php and index.php: they are specified in the form.

2. Open checkserver.php in a browser at your server address. The script verifies that the cURL module is available and that CRest can retain its files. If the check fails, resolve the issues reported by the script before moving on to the form: CRest will not retain the tokens without cURL and without write permission.

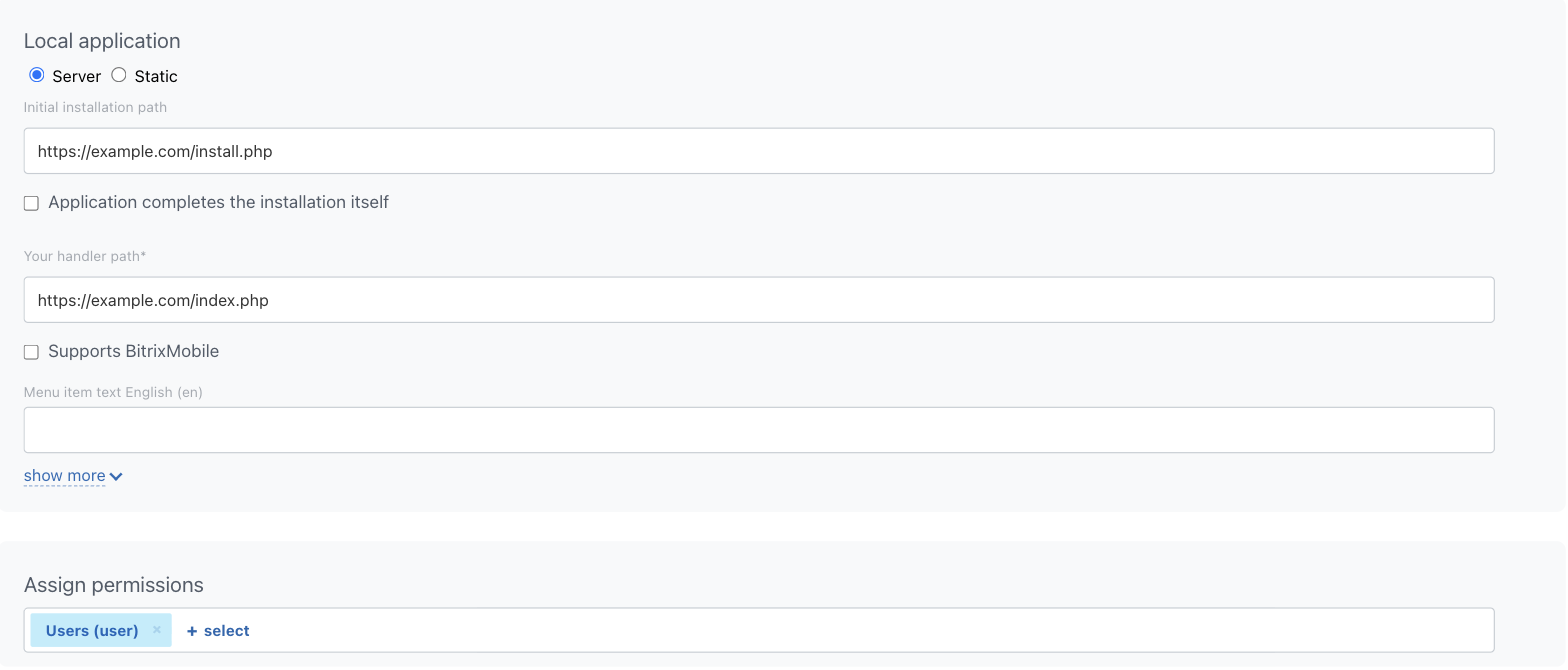

3. Open the local application form: Applications > Developer resources, the Common use cases tab, then Other > Local application.





4. Select the Server option. The Static option expects an archive with a page — see the article Static Local Application.

5. Specify the address of install.php in the Initial installation path field. Bitrix24 passes the authorization data to this address.

6. Leave the Application completes the installation itself checkbox off. With the checkbox off, Bitrix24 completes the installation itself and sends the authorization data to the initial installation address. If you turn the checkbox on, the ONAPPINSTALL event handler is not registered — the tokens do not arrive, and an application without an interface has nothing to complete the installation with.

7. Specify the address of index.php in the Your handler path field. The field is required even though Bitrix24 does not open the application page.

8. Leave the Menu item text field and the name fields for other languages hidden below it empty. It is the empty name that makes the application available through the API only: no item appears in the Bitrix24 left menu.

9. Select the application scopes in the Assign permissions block. The form will not be saved without them. Any of them will do for the example: the profile method works with the basic set of permissions. In the screenshot user is selected. The codes are listed in the article Available Scopes in Bitrix24.



10. Save the form. The application appears in the Applications > Developer resources > Integrations list.

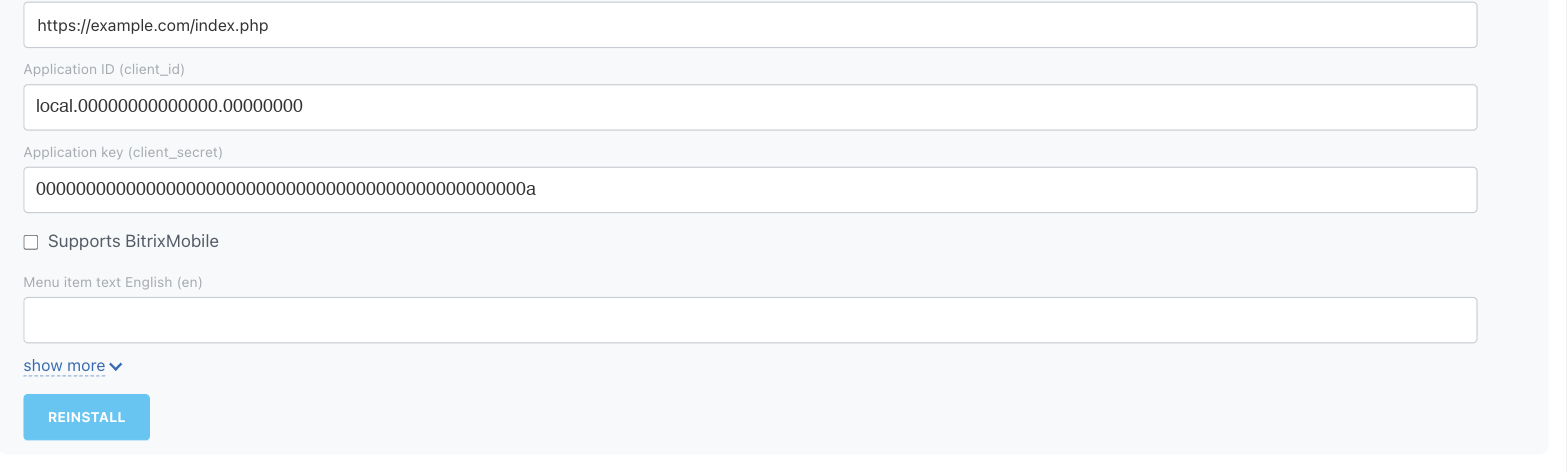

11. Copy the values of the Application ID (client_id) and Application key (client_secret) fields from the application card into the C_REST_CLIENT_ID and C_REST_CLIENT_SECRET constants of the settings.php file and upload the modified file to the server.



Bitrix24 contacts install.php right after the form is saved, so the tokens are retained even before you fill in settings.php. The application ID and the secret key are needed later: CRest renews the tokens with them.

The installation scenarios and the differences between them are described in the article Overview of Installing Local Applications.

How to Check the ResultHow to Check the Result

Open index.php in a browser at your server address. The page prints the response of the profile method:

Array
        (
            [result] => Array
                (
                    [ID] => 1
                    [ADMIN] => 1
                    [NAME] => Klaus
                    [LAST_NAME] => Weber
                    [PERSONAL_GENDER] => M
                    [TIME_ZONE] => Europe/Berlin
                )

            [time] => Array
                (
                    [start] => 1788867501.63142
                    [finish] => 1788867501.67418
                    [duration] => 0.042757034301758
                    [processing] => 0.0012109279632568
                    [date_start] => 2026-09-10T13:38:21+02:00
                    [date_finish] => 2026-09-10T13:38:21+02:00
                    [operating] => 0
                )

        )


The user details are returned in the result key, while time is added to the response by the REST API itself. The composition of the data does not depend on who opened the index.php page: the application calls the method with the tokens it received at installation. The list of fields is described in the article Get Basic Information About the Current User Profile.

What to Do If Errors OccurWhat to Do If Errors Occur

• no_install_app. At least one of the access_token, domain, refresh_token, application_token, client_endpoint values is empty in the CRest settings. The install.php script did not run: most often the server was unavailable at the moment the form was saved, or it lacked write permission. Check the server with the checkserver.php script and click Reinstall in the application card — the button is available to a Bitrix24 administrator only.
• expired_token. The access_token has expired and could not be renewed. Check that C_REST_CLIENT_ID and C_REST_CLIENT_SECRET are filled in in settings.php: without them the request to the authorization server does not go through.
• insufficient_scope. The application has not been granted the scope of the method. Add the required scope in the application card.
• The tokens stopped renewing after a few months. The refresh_token is valid for 180 days. If the application has not contacted Bitrix24 for longer than that, the authorization has to be obtained anew. How to avoid this is described in the article OAuth 2.0 token automatic renewal.

Permissions and SecurityPermissions and Security

• User permissions. The tokens are issued to the user who installed the application, so a call is limited by their permissions in Bitrix24. The application works on their behalf permanently, not only at the moment of installation. If the application has received the ONAPPUSERREADY event, it also has the authorization of the system user — that one does not depend on the user who installed the application.
• Application scopes. The set of scopes is selected at creation and changed in the application card.
• Secrets and tokens. Retain the application ID, the secret key, and both tokens on your server. The secret key takes part in requests to the authorization server only. Do not place these values in client-side code, do not retain them in a repository, and do not pass them to third parties.
• The settings file. Close external network access to settings.json: by default it lies in a folder available at the application address, and it holds the tokens.
• The library logs. By default CRest writes logs into the logs folder next to the library, and the installation record ends up holding the whole request together with the tokens. Close the folder from external access or disable the logs with the C_REST_BLOCK_LOG constant in the settings.php file.

How to Verify the Request SourceHow to Verify the Request Source

The application addresses are available from the external network — anyone, not only Bitrix24, can contact them. That is why the event handler has to compare two application_token values:

• The application retains the reference value at installation. In the CRest distribution, the install.php script writes the application_token from the auth object into its settings. For a local application this value stays the same until the secret key changes.
• Bitrix24 passes the current value in the auth.application_token parameter of every event.

Compare these values before processing the event and reject the request if they do not match. The token storage rules are described in the article Security in Handlers.

For the initial installation address this comparison does not work: the reference value arrives in the very request that has to be verified. That is why the installation script must output nothing in response and must not overwrite the already retained settings on repeated requests.
