Additional Placement Features for CRM_XXX_DETAIL_ACTIVITY, CRM_DYNAMIC_XXX_DETAIL_ACTIVITY

Scope: placement, crm

Who can work with the widget: a user with access permission to modify the CRM object

The CRM_XXX_DETAIL_ACTIVITY and CRM_DYNAMIC_XXX_DETAIL_ACTIVITY placements add an application item above the timeline in a CRM item form. Instead of a custom interface in an iframe, the application can display the standard Bitrix24 interface in this item: text, links, input fields, lists, and buttons.

To register the widget, use the placement.bind method. The basic capabilities of the placement are described in the article Button Above the Timeline of the CRM object.

Download an example application using this placement.

Widget LocationWidget Location

The user opens the application item in the object form. If useBuiltInInterface: Y was passed during registration, the application first loads in a hidden iframe and then builds the interface by calling setLayout.

OPTIONS ParameterOPTIONS Parameter

The built-in interface is enabled by the useBuiltInInterface parameter when the placement is registered. The full list of the OPTIONS parameters is described on the Button Above the Timeline of the CRM_XXX_DETAIL_ACTIVITY, CRM_DYNAMIC_XXX_DETAIL_ACTIVITY Card page.

When useBuiltInInterface = Y, the interface is built from the LayoutDto structure, and the process of working with it is described below.

Handler DataHandler Data

When the application loads, Bitrix24 passes the current item context in placementOptions:

{
          "entityTypeId": 2,
          "entityId": 123,
          "useBuiltInInterface": "Y"
        }


Registration ExampleRegistration Example

BX24.callMethod(
          'placement.bind',
          {
            'PLACEMENT': 'CRM_DEAL_DETAIL_ACTIVITY',
            'HANDLER': 'https://your-handler-uri.com',
            'TITLE': 'My Widget',
            'OPTIONS': {
              'useBuiltInInterface': 'Y',
              'newUserNotificationTitle': 'Welcome to the new application',
              'newUserNotificationText': 'E-invoice will help you manage invoices'
            }
          }
        );


Working with the Widget InterfaceWorking with the Widget Interface

Interaction occurs through the method BX24.placement.call. The application workflow when using the standard Bitrix24 interface useBuiltInInterface = Y:

1. Loading the iframe.

   The application is loaded in a hidden iframe. The placementOptions include:

   • entityTypeId
   • entityId
   • useBuiltInInterface: Y

2. Rendering the interface.

   Once the application is loaded, it should call setLayout to render the initial state of the widget.

   BX24.placement.call('setLayout', LayoutDto, callback);


3. Responding to actions.

   If the application displays interactive elements in the interface, such as links, it can register a handler bindLayoutEventCallback to handle interactions with those elements.

   BX24.placement.call('bindLayoutEventCallback', null, callback);


4. Managing element states.

   You can change the appearance and visibility of a specific interface element through setLayoutItemState.

   BX24.placement.call('setLayoutItemState', { id: '...', visible: true/false, properties: {...} }, callback);


5. Managing buttons.

   You can change the appearance of the buttons at the bottom of the interface through setPrimaryButtonState and setSecondaryButtonState.

   BX24.placement.call('setPrimaryButtonState', {...}, callback);
           BX24.placement.call('setSecondaryButtonState', {...}, callback);


6. Completing the process.

   When the user's interaction with the widget is complete or if the user clicks "cancel," you need to call finish. The timeline will switch to the default tab.

   BX24.placement.call('finish');


7. Locking the interface.

   During long operations, such as saving, the interface can be locked by calling lock. To unlock, call unlock.

   BX24.placement.call('lock');   // lock
           BX24.placement.call('unlock'); // unlock


8. Tracking changes to the entity.

   To track changes to the entity fields, for example, to redraw the interface based on the field value, you can register a handler bindEntityUpdateCallback. The callback will be invoked immediately after the fields are saved in the editor.

   BX24.placement.call('bindEntityUpdateCallback', null, callback);


Interface Appearance LayoutDtoInterface Appearance LayoutDto

Clicking on active buttons triggers callbacks:

• primaryButton — callback BX24.placement.call('bindPrimaryButtonClickCallback', null, callback)
• secondaryButton — callback BX24.placement.call('bindSecondaryButtonClickCallback', null, callback)

ContentBlockDtoContentBlockDto

Content blocks in the main area can be combined and flexibly assembled into various interfaces.

General structure of a block:

{
          "type": "string",
          "visible": true,
          "properties": {}
        }


• type — type of the block, string,
• visible — controls the visibility of the block, boolean field. Changing visibility allows for dynamic interfaces. Default = true.
• properties — set of properties for a specific block.

Types of Content BlocksTypes of Content Blocks

TextText

A block displaying formatted text.

Required parameters are marked with *

{
          "type": "text",
          "properties": {
            "value": "Hello!\nWe are starting.",
            "multiline": true,
            "bold": true,
            "size": "lg",
            "color": "base_90"
          }
        }


LinkLink

Required parameters are marked with *

{
          "type": "link",
          "properties": {
            "text": "Open Deal",
            "action": { "type": "redirect", "value": "/crm/deal/details/123/" },
            "bold": true
          }
        }


Block with TitleBlock with Title

The block displays a title and a value. Another content block can be used as the value.

Required parameters are marked with *

Example with a text content block:

{
          "type": "withTitle",
          "properties": {
            "title": "Title",
            "block": {
              "type": "text",
              "properties": {
                "value": "Some value"
              }
            }
          }
        }


Example with a link content block:

{
          "type": "withTitle",
          "properties": {
            "title": "Title 2",
            "block": {
              "type": "link",
              "properties": {
                "text": "Open Deal",
                "action": {
                  "type": "redirect",
                  "value": "/crm/deal/details/123/"
                }
              }
            },
            "inline": true
          }
        }


Multiple Content Blocks in One LineMultiple Content Blocks in One Line

The block displays multiple content blocks of type text, link, or dropdown list in one line. This allows displaying text with different formatting, links, and lists in a single line.

Required parameters are marked with *

{
          "type": "lineOfBlocks",
          "properties": {
            "blocks": {
              "text": {
                "type": "text",
                "properties": {
                  "value": "Some text"
                }
              },
              "link": {
                "type": "link",
                "properties": {
                  "text": "link",
                  "action": {
                    "type": "redirect",
                  "value": "/crm/deal/details/123/"
                  }
                }
              },
              "boldText": {
                "type": "text",
                "properties": {
                  "value": "bold text",
                  "bold": true
                }
              }
            }
          }
        }

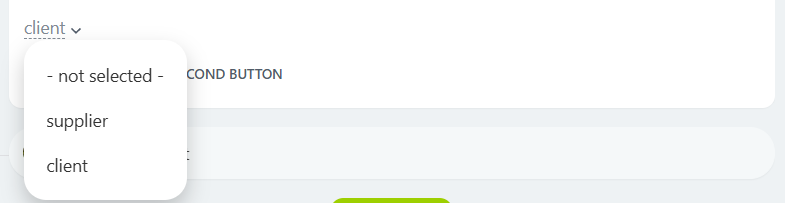

Dropdown MenuDropdown Menu

Required parameters are marked with *

{
          "type": "dropdownMenu",
          "properties": {
            "selectedValue": "client",
            "values": {
              "": "- not selected -",
              "supplier": "supplier",
              "client": "client"
            }
          }
        }


To track value changes, register a callback:

• BX24.placement.call('bindValueChangeCallback', null, Callback) to receive changes in any of the blocks
• BX24.placement.call('bindValueChangeCallback', 'block id', Callback) to receive changes in the value of only that block.

When the value changes, the callback will receive the id of the dropdown block and its current value: {id: "clientMenu", value: "client"}.

Text Input FieldText Input Field

Required parameters are marked with *

{
          "type": "input",
          "properties": {
            "value": "aaa@mail.domain",
            "placeholder": "Enter email",
            "title": "Email",
            "errorText": "Invalid value"
          }
        }


To track value changes, register a callback:

• BX24.placement.call('bindValueChangeCallback', null, Callback) to receive changes in any of the blocks
• BX24.placement.call('bindValueChangeCallback', 'block id', Callback) to receive changes in the value of only that block.

When the value changes, the callback will receive the id of the text input field and its current value: {id: "email", value: "aaa@mail.domain"}.

Multiline Text Input FieldMultiline Text Input Field

Required parameters are marked with *

{
          "type": "textarea",
          "properties": {
            "value": "Go through the gate\nTurn left",
            "title": "Additional Information"
          }
        }


To track value changes, register a callback:

• BX24.placement.call('bindValueChangeCallback', null, Callback) to receive changes in any of the blocks
• BX24.placement.call('bindValueChangeCallback', 'block id', Callback) to receive changes in the value of only that block.

When the value changes, the callback will receive the id of the text input field and its current value: {id: "description", value: "Go through the gate\nTurn left"}.

Input Field with List SelectionInput Field with List Selection

Required parameters are marked with *

{
          "type": "select",
          "properties": {
            "selectedValue": "la",
            "values": {
              "nyc": "New York",
              "la": "Los Angeles",
              "chi": "Chicago"
            },
            "title": "City"
          }
        }


To track value changes, register a callback:

• BX24.placement.call('bindValueChangeCallback', null, Callback) to receive changes in any of the blocks
• BX24.placement.call('bindValueChangeCallback', 'block id', Callback) to receive changes in the value of only that block.

When the value changes, the callback will receive the id of the field and its current value: {id: "city", value: "nyc"}.

Unordered ListUnordered List

Required parameters are marked with *

{
          "type": "list",
          "properties": {
            "blocks": {
              "li1": {
                "type": "text",
                "properties": {
                  "value": "Import CRM elements without attributes",
                  "color": "base_70"
                }
              },
              "li2": {
                "type": "link",
                "properties": {
                  "text": "Getting Started with CRM",
                  "action": {
                    "type": "layoutEvent",
                    "value": "link2ItemClicked!"
                  }
                }
              },
              "li3": {
                "type": "text",
                "properties": {
                  "value": "How to convert a lead",
                  "bold": true,
                  "color": "base_90"
                }
              }
            }
          }
        }

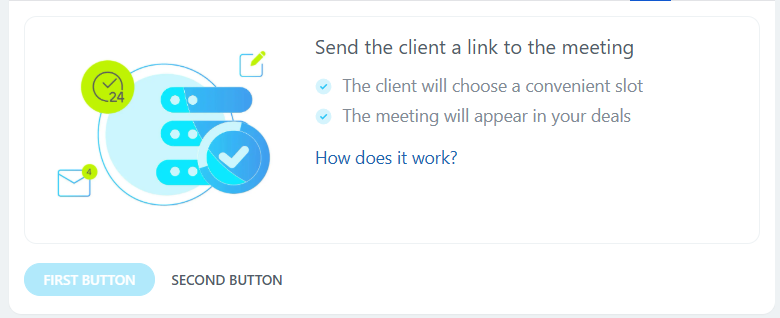

SectionSection

The block displays a grouped set of blocks. An option with an image is possible.

Required parameters are marked with *

Example with multiple blocks and an image:

{
          "type": "section",
          "properties": {
            "type": "withBorder",
            "imageSrc": "https://www.example.com/images/content/products/box/bus.png",
            "blocks": {
              "header": {
                "type": "text",
                "properties": {
                  "value": " Send the client a link to the meeting",
                  "size": "xl",
                  "color": "base_90"
                }
              },
              "notes": {
                "type": "list",
                "properties": {
                  "blocks": {
                    "li1": {
                      "type": "text",
                      "properties": {
                        "value": "The client will choose a convenient slot",
                        "color": "base_70"
                      }
                    },
                    "li2": {
                      "type": "text",
                      "properties": {
                        "value": "The meeting will appear in your tasks",
                        "color": "base_70"
                      }
                    }
                  }
                }
              },
              "howto": {
                "type": "link",
                "properties": {
                  "text": "How does it work?",
                  "action": {
                    "type": "openRestApp",
                    "value": "howto"
                  }
                }
              }
            }
          }
        }


Example with one block without an image:

{
        	"type": "section",
        	"properties": {
        		"type": "danger",
        		"blocks": {
        			"errorMessage": {
        				"type": "text",
        				"properties": {
        					"value": "An error occurred. Please try again.",
        					"color": "danger"
        				}
        			}
        		}
        	}
        }


ButtonDtoButtonDto

A button at the bottom of the interface.

The button is active by default, so the state parameter can be omitted.

ActionDtoActionDto

An action defines the response to a click on a specific element. Available types of actions:

• redirect
• JS event
• open application slider

RedirectRedirect

Redirecting is possible in two variants:

• slider, if it is a relative link to standard Bitrix24 objects that support working in a slider,
• regular link redirection in other cases.

Required parameters are marked with *

{
          "type": "redirect",
          "value": "/crm/deal/details/1/"
        }


JS EventJS Event

Required parameters are marked with *

{
          "type": "layoutEvent",
          "value": "clicked"
        }


Calling the action triggers the handler registered via BX24.placement.call('bindLayoutEventCallback', null, Callback) or BX24.placement.call('bindLayoutEventCallback', 'block id', Callback).

The handler will receive the value of the action and the id of the block that triggered the action: {id: "myLink", value: "clicked"}.

Opening Application SliderOpening Application Slider

Calling the action will open the slider of the application that registered the widget. The context will be passed to the slider:

• entityTypeId — identifier of the object type to which the activity is linked
• entityId — item identifier

Required parameters are marked with *

ActionSliderParamsDtoActionSliderParamsDto

{
          "type": "openRestApp",
          "value": {
            "myId": 123,
            "someImportant": "qwerty"
          },
          "sliderParams": {
            "title": "This is the application slider title",
            "width": 700
          }
        }


Examples of LayoutDtoExamples of LayoutDto

{

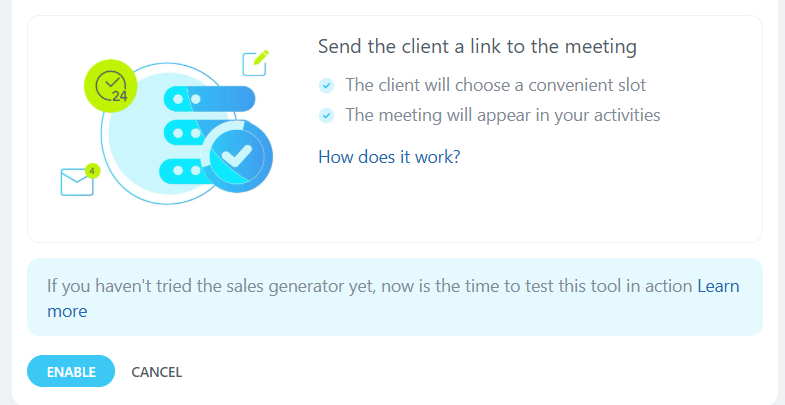

        	"blocks": {
        		"section1": {
        			"type": "section",
        			"properties": {
        				"type": "withBorder",
        				"imageSrc": "https://www.example.com/images/content/products/box/bus.png",
        				"blocks": {
        					"header": {
        						"type": "text",
        						"properties": {
        							"value": " Send the client a link to the meeting",
        							"size": "xl",
        							"color": "base_90"
        						}
        					},
        					"notes": {
        						"type": "list",
        						"properties": {
        							"blocks": {
        								"li1": {"type": "text", "properties": {"value": "The client will choose a convenient slot", "color": "base_70"}},
        								"li2": {"type": "text", "properties": {"value": "The meeting will appear in your tasks", "color": "base_70"}}
        							}
        						}
        					},
        					"howto": {
        						"type": "link",
        						"properties": {"text": "How does it work?", "action": {"type": "openRestApp", "value": "howto"}}
        					}
        				}
        			}
        		},
        		"section2": {
        			"type": "section",
        			"properties": {
        				"type": "primary",
        				"blocks": {
        					"sectionText": {
        						"type": "lineOfBlocks",
        						"properties": {"blocks": {"block1": {"type": "text", "properties": {"value": "If you haven't tried the sales generator yet, now is the time to test this tool in action", "color": "base_70"}}, "block2": {"type": "link", "properties": {"text": "Learn more", "action": {"type": "redirect", "value": "/crm/"}}}}}
        					}
        				}
        			}
        		}
        	},
        	"primaryButton": {"title": "Enable"},
        	"secondaryButton": {"title": "Cancel"}
        }


{

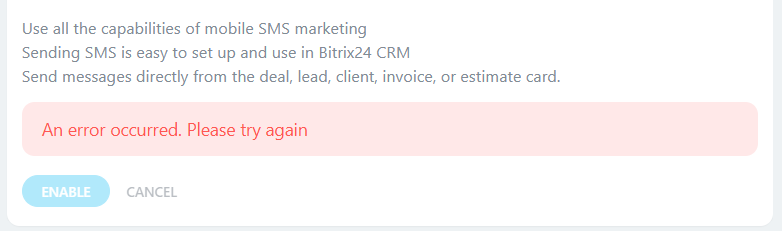

        	"blocks": {
        		"errorMessage": {
        			"type": "text",
        			"properties": {"value": "Use all the capabilities of mobile SMS marketing\nSending SMS is easy to set up and use in CRM Bitrix24\nSend messages directly from the deal, lead, client, invoice, or estimate card.", "size": "sm", "color": "base_70", "multiline": true}
        		},
        		"section1": {
        			"type": "section",
        			"properties": {"type": "danger", "blocks": {"errorMessage": {"type": "text", "properties": {"value": "An error occurred. Please try again", "color": "danger"}}}}
        		}
        	},
        	"primaryButton": {"title": "Enable", "state": "disabled"},
        	"secondaryButton": {"title": "Cancel", "state": "disabled"}
        }


{
        	"blocks": {
        		"name": {"type": "input", "properties": {"value": "John", "placeholder": "Enter name", "title": "Name"}},
        		"lastname": {"type": "input", "properties": {"value": "Doe", "placeholder": "", "title": "Last Name"}},
        		"secondname": {"type": "input", "properties": {"value": "", "placeholder": "Enter middle name", "title": "Middle Name"}}
        	},
        	"primaryButton": {"title": "Save"},
        	"secondaryButton": {"title": "Cancel"}
        }


Common ErrorsCommon Errors

Continue ExploringContinue Exploring

• Widgets in CRM: Overview of Placements
• Register a Widget Handler placement.bind
• Interaction with UI: Overview of Methods
• Interactivity in Applications: Overview of Methods
• Button Above the Timeline of the CRM_XXX_DETAIL_ACTIVITY, CRM_DYNAMIC_XXX_DETAIL_ACTIVITY Card
