The object describing the appearance of a timeline entry is a hierarchical structure of nested objects of various types.

Each nested object has its own set of fields and is described below in the form of a DTO (Data Transfer Object).

The top-level object of the timeline entry is LayoutDto.

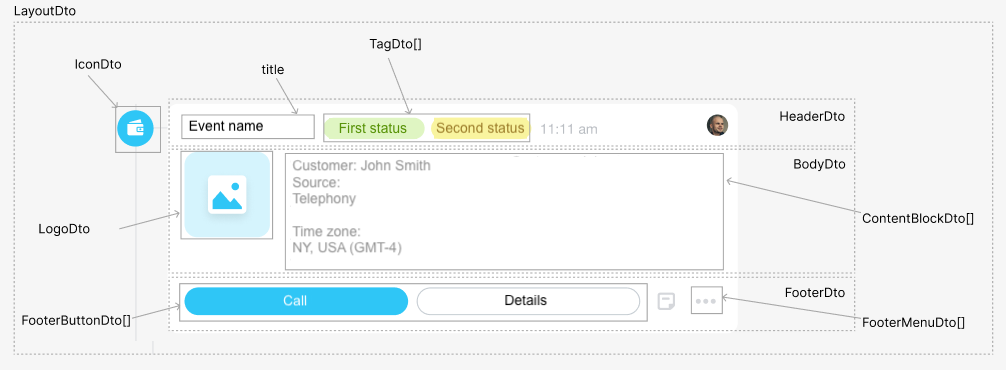

Top-level object of the timeline entry

Parameters of the `LayoutDto` Object

Required parameters are marked with *

Field	Description
icon^* `IconDto`	Icon to the left of the entry
header^* `HeaderDto`	Title of the record
body^* `BodyDto`	Main content area of the entry
footer `FooterDto`	Bottom part of the entry with action block

Object Example

{
            "icon": {
                "code": "call-completed"
            },
            "header": {
                "title": "Incoming call",
                "tags": {
                    "status2": {
                        "type": "warning",
                        "title": "not transcribed"
                    }
                }
            },
            "body": {
                "logo": {
                    "code": "call-incoming",
                    "action": {
                        "type": "redirect",
                        "uri": "/crm/deal/details/123/"
                    }
                },
                "blocks": {
                    "client": {
                        "type": "withTitle",
                        "properties": {
                            "title": "Client",
                            "inline": true,
                            "block": {
                                "type": "text",
                                "properties": {
                                    "value": "Müller GmbH"
                                }
                            }
                        }
                    },
                    "responsible": {
                        "type": "lineOfBlocks",
                        "properties": {
                            "blocks": {
                                "client": {
                                    "type": "link",
                                    "properties": {
                                        "text": "Klaus Weber",
                                        "bold": true,
                                        "action": {
                                            "type": "redirect",
                                            "uri": "/crm/lead/details/789/"
                                        }
                                    }
                                },
                                "phone": {
                                    "type": "text",
                                    "properties": {
                                        "value": "+49 999 888 7777"
                                    }
                                }
                            }
                        }
                    }
                }
            },
            "footer": {
                "buttons": {
                    "startCall": {
                        "title": "About client",
                        "action": {
                            "type": "openRestApp",
                            "actionParams": {
                                "clientId": 456
                            }
                        },
                        "type": "primary"
                    }
                },
                "menu": {
                    "showPostponeItem": "false",
                    "items": {
                        "confirm": {
                            "title": "Confirm request",
                            "action": {
                                "type": "restEvent",
                                "id": "confirm",
                                "animationType": "loader"
                            }
                        },
                        "decline": {
                            "title": "Reject request",
                            "action": {
                                "type": "restEvent",
                                "id": "decline",
                                "animationType": "loader"
                            }
                        }
                    }
                }
            }
        }
