Configuration wizard for REST-only applications

If you are developing integrations for Bitrix24 using AI tools (Codex, Claude Code, Cursor), connect to the MCP server so that the assistant can utilize the official REST documentation.

The REST-only application configuration wizard is a built-in Bitrix24 form for applications without a user interface. During development, it is sufficient to describe the fields in JSON format. The configuration wizard will automatically generate a step-by-step form, collect the data, and send it to the specified handler.

Use the configuration wizard:

if the application has no interface of its own,
simple configurations are required: text input in a line, selecting an option from a list,
a Bitrix24-style interface is needed without a separate UI,
data from the installation event callback handler is insufficient.

How the wizard works

Specify the URL_SETTINGS parameter in the Application settings field when registering an application in the developer console, in the REST-only section. If the parameter is filled, the user will see a slider with a configuration form after installing the application.

If the URL_SETTINGS parameter is not filled, the configuration form will not open and Bitrix24 will not send a request to retrieve the form configuration.

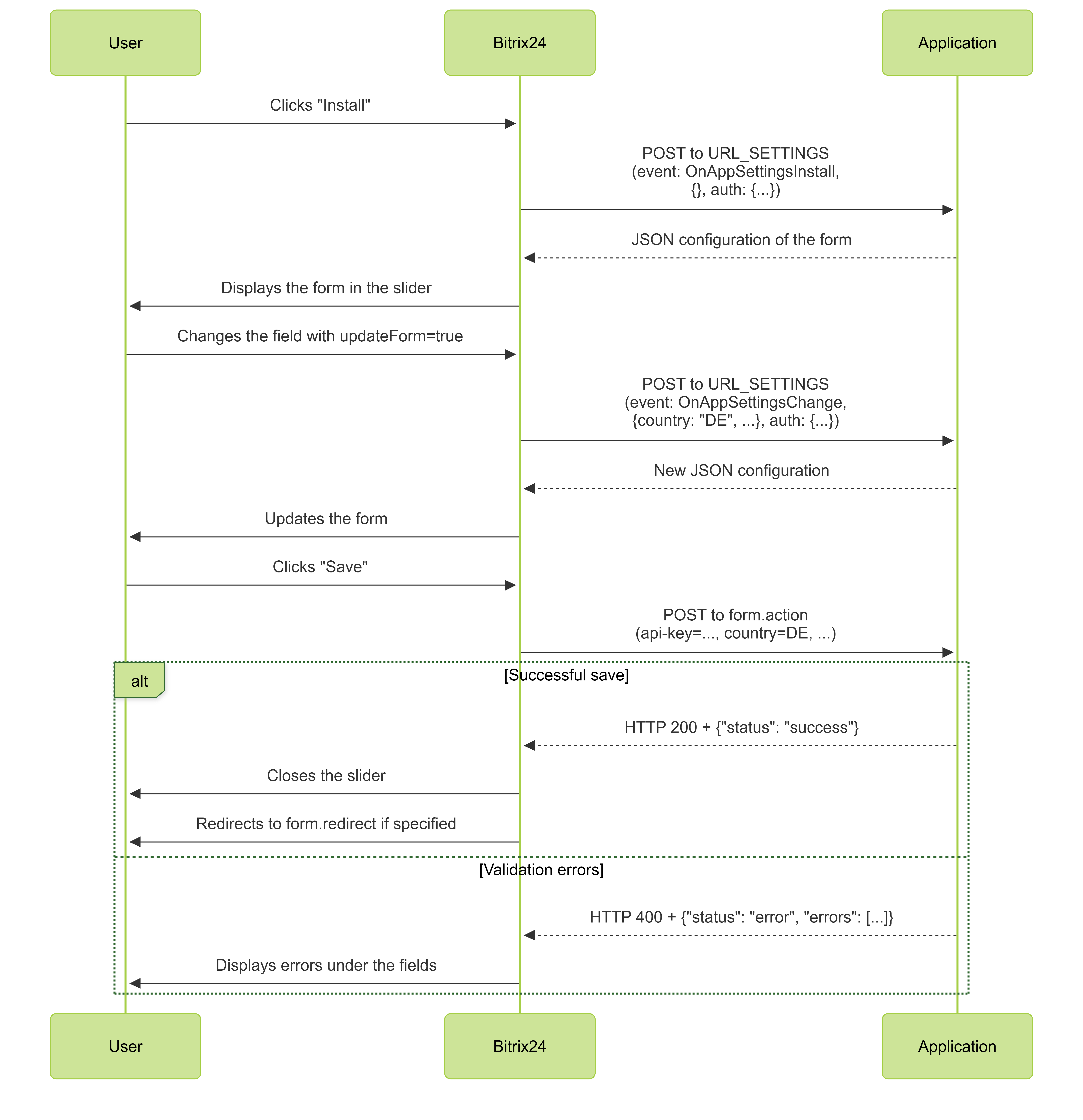

Form lifecycle

The user installs the application.
Bitrix24 makes a POST request to URL_SETTINGS with the event: OnAppSettingsInstall parameter.
The application returns a JSON form configuration.
Bitrix24 displays the form in a slider.
Upon updateForm: true, Bitrix24 requests URL_SETTINGS again with the event: OnAppSettingsChange parameter.
The user clicks "Save", and the data is sent to form.action.
The application returns success or a list of errors. Upon success, Bitrix24 closes the slider and, if necessary, performs a redirect to form.redirect.

form lifecycle

JSON configuration structure

The configuration consists of three blocks:

a header,
steps with fields,
saving parameters.

The header defines the name of the settings page and the builder version.

{
          "title": "Master Name",
          "version": "1"
        }

Required parameters are marked with *

Name `type`	Description
title* `string`	Interface heading
version* `string`	Builder version, always `"1"`

Steps

steps is an array of steps. Each step describes a separate screen of the form.

{
          "id": "step1",
          "title": "API Key",
          "description": "Enter access key",
          "fields": [
            {
              "id": "api-key",
              "name": "api-key",
              "type": "input",
              "label": "API Key",
              "placeholder": "Enter API key"
            }
          ]
        }

Required parameters are marked with *

Name `type`	Description
id* `string`	Unique step identifier
title* `string`	Step heading
description `string`	Explanatory text
help `boolean`	Help icon display flag
fields* `array`	Array of fields, detailed description

Parameter fields

Required parameters are marked with *

Name `type`	Description
id* `string`	Field identifier
name* `string`	Field name, key in data
type* `string`	Field type: `input` — data input string, dropdown-list — list
label `string`	Label above the field
placeholder `string`	Placeholder inside the field
value `string`	Default value
items `array`	List of options for dropdown-list
updateForm `boolean`	Form refresh flag on field change

If the updateForm parameter is equal to true, Bitrix24 will request again URL_SETTINGS and pass the current field values in the request.
This allows the form to be updated while the user is filling it out. For example, you can add a new field with a list of regions depending on the value selected in the country field.

Saving parameters

The form block describes where to send the data and which buttons to show.

"form": {
          "id": "config-form",
          "action": "https://example.com/save-handler.php",
          "clientId": "local.123...",
          "redirect": "/crm/",
          "saveCaption": "Save",
          "cancelCaption": "Cancel"
        }

Required parameters are marked with *

Name `type`	Description
id* `string`	Form identifier
action* `string`	Save handler URL
clientId* `string`	Application identifier client_id
redirect `string`	Path after successful save
saveCaption `string`	"Save" button label
cancelCaption `string`	"Cancel" button label

Configuration example

{
          "title": "Storecove e-invoice connector",
          "version": "1",
          "steps": [
            {
              "id": "step1",
              "title": "API Key",
              "description": "Specify the key from your Storecove account",
              "fields": [
                {
                  "id": "api-key",
                  "name": "api-key",
                  "type": "input",
                  "label": "Storecove API Key",
                  "placeholder": "Enter API key"
                }
              ]
            },
            {
              "id": "step2",
              "title": "Country",
              "fields": [
                {
                  "id": "country",
                  "name": "country",
                  "type": "dropdown-list",
                  "label": "Your country",
                  "items": [
                    { "value": "RU", "name": "United States" },
                    { "value": "DE", "name": "Germany" },
                    { "value": "US", "name": "United States" }
                  ],
                  "updateForm": true
                }
              ]
            },
            {
              "id": "step3",
              "title": "Company details",
              "fields": [
                {
                  "id": "vat-id",
                  "name": "vat-id",
                  "type": "input",
                  "label": "VAT ID",
                  "placeholder": "Enter VAT ID"
                }
              ]
            }
          ],
          "form": {
            "id": "config-form",
            "action": "https://example.com/save.php",
            "clientId": "local.6537665f598492.98090704",
            "redirect": "/",
            "saveCaption": "Connect",
            "cancelCaption": "Later"
          }
        }

URL_SETTINGS handler

Bitrix24 sends a POST request to URL_SETTINGS to retrieve the form configurations. The values OnAppSettingsInstall, OnAppSettingsDisplay, and OnAppSettingsChange are not separate events. These are values of the event parameter, which the application uses to determine the request scenario.

In response to the request, the application must return a JSON form configuration. If the response is correct, Bitrix24 will display the form in the interface.

Call scenarios

In the examples, the auth object is abbreviated.

OnAppSettingsInstall is passed after the application is installed.

{
          "event": "OnAppSettingsInstall",
          "auth": {}
        }

OnAppSettingsDisplay is passed when a user manually opens the application settings from the application card.

{
          "event": "OnAppSettingsDisplay",
          "auth": {}
        }

OnAppSettingsChange is passed when a user changes the value of a field with the updateForm: true parameter. An object is additionally passed in the request data with the current field values.

{
          "event": "OnAppSettingsChange",
          "data": {
            "api-key": "cc1107f4-...",
            "country": "DE"
          },
          "auth": {}
        }

Example of a POST request in PHP:

[
          'event' => 'OnAppSettingsInstall', // or OnAppSettingsChange / OnAppSettingsDisplay
          'data'  => [ /* current field values */ ],
          'auth'  => [
            'access_token' => '***',
            'expires' => 1768385511,
            'expires_in' => 3600,
            'scope' => 'crm,bizproc,appform,user_brief,placement,catalog',
            'domain' => 'some-domain.bitrix24.com',
            'server_endpoint' => 'https://oauth.bitrix.info/rest/',
            'status' => 'F',
            'client_endpoint' => 'https://some-domain.bitrix24.com/rest/',
            'member_id' => '***',
            'refresh_token' => '***',
            'user_id' => 431,
            'client_id' => '***',
            'application_token' => '***'
          ]
        ]

Name `type`	Description
event `string`	Request scenario: `OnAppSettingsInstall` — after application installation `OnAppSettingsDisplay` — when opening application settings `OnAppSettingsChange` — when changing a field with `updateForm: true`
data `object`	Current form field values. Passed for `OnAppSettingsChange`
auth `object`	Authorization data

Post-save handler

When a user clicks "Save", Bitrix24 sends the form data to the address specified in the form.action field.

$_POST = [
          'data' => [
            'api-key' => 'cc1107f4-...',
            'country' => 'DE',
            // other fields by name (name)
          ],
          'auth' => [
            'access_token' => '***',
            'expires' => 1768385511,
            'expires_in' => 3600,
            'scope' => 'crm,bizproc,appform,user_brief,placement,catalog',
            'domain' => 'some-domain.bitrix24.com',
            'server_endpoint' => 'https://oauth.bitrix.info/rest/',
            'status' => 'F',
            'client_endpoint' => 'https://some-domain.bitrix24.com/rest/',
            'member_id' => '***',
            'refresh_token' => '***',
            'user_id' => 431,
            'client_id' => '***',
            'application_token' => '***'
          ],
          'saveform' => 'Y'
        ];

Example of reading data:

$data = $_POST['data'] ?? [];
        $apiKey = $data['api-key'] ?? null;
        $country = $data['country'] ?? null;

Successful response

A successful response informs Bitrix24 that the data has been retained. After this, the slider closes. If the form.redirect parameter is set, a redirect to the address in the parameter will be performed.

header("HTTP/1.1 200 OK");
        header("Content-Type: application/json");
        echo json_encode(['status' => 'success']);

Error response

If the data is incorrect, return HTTP 400 and a list of errors. The field field must match the name value in the configuration.

header("HTTP/1.1 400 Bad Request");
        header("Content-Type: application/json");
        echo json_encode([
          'status' => 'error',
          'errors' => [
            ['field' => 'api-key', 'message' => 'Invalid API key format'],
            ['field' => 'country', 'message' => 'Country is required']
          ]
        ]);

Bitrix24 displays errors under the corresponding fields. You can return multiple errors for a single field.

Example handler for returning a status

<?php
        $data = $_POST['data'] ?? [];

        if (($data['api-key'] ?? null) === 'error')
        {
            header("HTTP/1.1 400 Bad Request");
            header("Content-Type: application/json");

            echo json_encode([
                'status' => 'error',
                'errors' => [
                    [
                        'field' => 'api-key',
                        'message' => 'You input invalid value',
                    ],
                    [
                        'field' => 'api-key',
                        'message' => 'You input invalid value 2',
                    ],
                ],
            ]);
            exit();
        }

        file_put_contents('./settings.json', json_encode($_POST));

        header("HTTP/1.1 200 OK");
        header("Content-Type: application/json");
        echo json_encode(['status' => 'success']);
        exit();
        ?>

Deprecated form display method

The appform.show method is an alternative way to open the form via the showForm push event.

Features:

an active user session in Bitrix24 is required, otherwise the event is lost,
access_token is required to call on behalf of the user.

Example of calling appform.show via PHP SDK

use Bitrix24\SDK\Core\Credentials\ApplicationProfile;
        use Bitrix24\SDK\Services\ServiceBuilderFactory;
        use Psr\Log\NullLogger;
        use Symfony\Component\EventDispatcher\EventDispatcher;
        use Symfony\Component\HttpFoundation\Request;

        require_once __DIR__ . '/vendor/autoload.php';

        $appProfile = ApplicationProfile::initFromArray([
            'BITRIX24_PHP_SDK_APPLICATION_CLIENT_ID'     => 'local.6537665f598492.98090704',
            'BITRIX24_PHP_SDK_APPLICATION_CLIENT_SECRET' => 'client_secret',
            'BITRIX24_PHP_SDK_APPLICATION_SCOPE'         => 'crm,appform,placement',
        ]);

        // It is assumed that the request came from Bitrix24 (placement)
        $serviceBuilder = ServiceBuilderFactory::createServiceBuilderFromPlacementRequest(
            Request::createFromGlobals(),
            $appProfile,
            new EventDispatcher(),
            new NullLogger()
        );

        $config = [
            'title' => 'Push-initiated form',
            'version' => '1',
            'steps' => [
                [
                    'id' => 'step1',
                    'title' => 'API Key',
                    'fields' => [
                        ['id' => 'key', 'name' => 'key', 'type' => 'input']
                    ]
                ]
            ],
            'form' => [
                'id' => 'config-form',
                'action' => 'https://example.com/save.php',
                'clientId' => 'local.6537665f598492.98090704',
                'redirect' => '/'
            ]
        ];

        try {
            $serviceBuilder->core->call('appform.show', [
                'config' => json_encode($config, JSON_THROW_ON_ERROR)
            ]);
        } catch (\Throwable $e) {
            // error handling
        }

The primary method is an automatic request to URL_SETTINGS after the application is installed. The appform.show method is deprecated.
