Scope: task

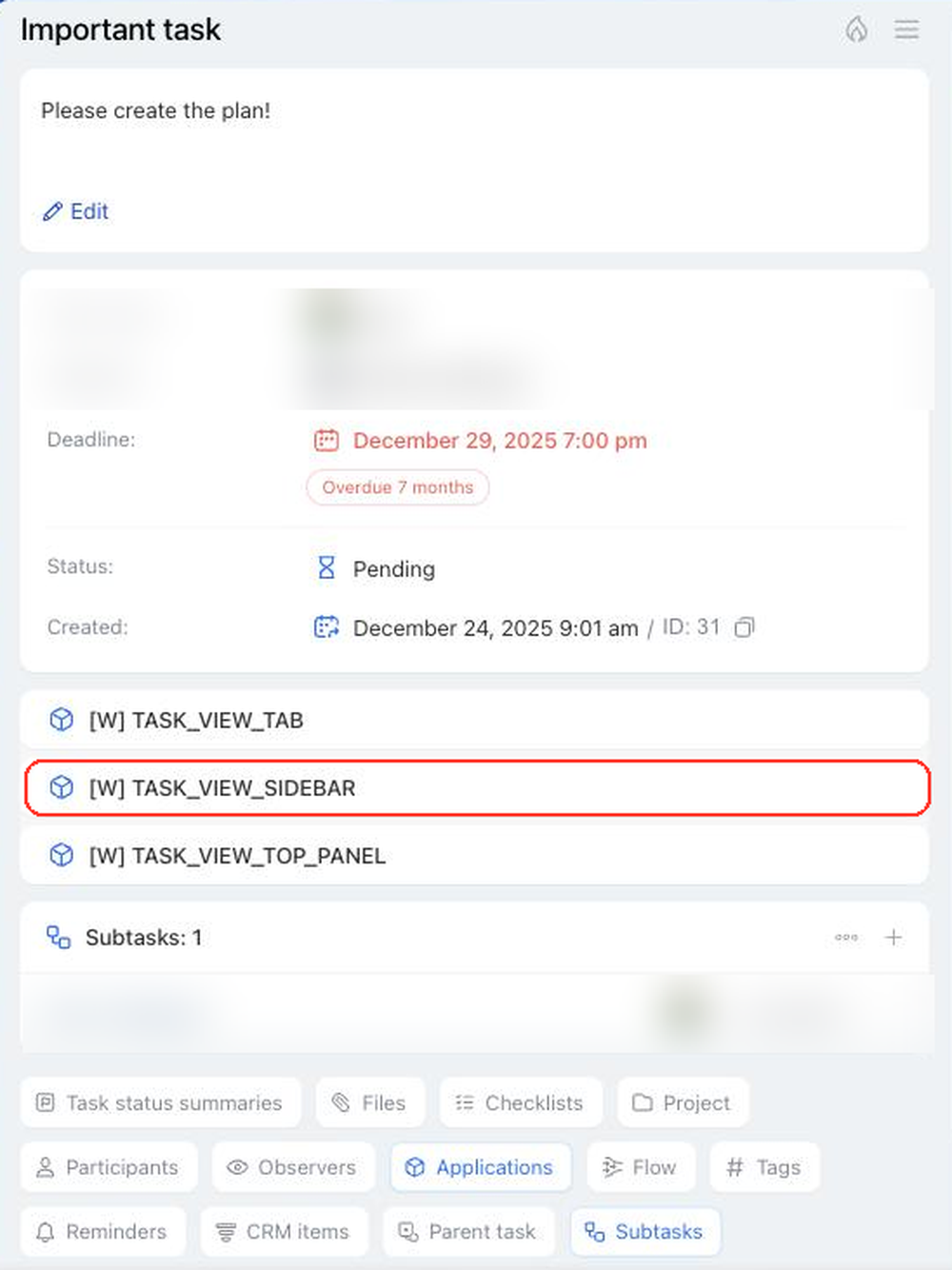

You can add your item to the right sidebar of the old task card.

Since version tasks 25.700.0, a new task card has been released. The location for the TASK_VIEW_SIDEBAR item is absent in the new card. All integrations within the card are displayed in a single "Applications" block.

Previously registered TASK_VIEW_SIDEBAR items continue to function and are displayed in the "Applications" block.

Embedded applications

The specific placement code for the widget is specified in the PLACEMENT parameter of the placement.bind method.

The integration will not be displayed in the interface until the application installation is complete. Check the application installation

Where the Widget is Embedded

Widget Code

Location

TASK_VIEW_SIDEBAR

Item in the right sidebar of the task card

What the Handler Receives

Data is transmitted as a POST request

Array
        (
            [DOMAIN] => xxx.bitrix24.com
            [PROTOCOL] => 1
            [LANG] => en
            [APP_SID] => 84986ed8551be43c882fc720b8e406e3
            [AUTH_ID] => 9e52ba6600705a0700005a4b00000001f0f1076fce1ae9b9c15bf669f414769c1eb700
            [AUTH_EXPIRES] => 3600
            [REFRESH_ID] => 8ed1e16600705a0700005a4b00000001f0f10706b7d2b53d9a0e08c50eb4b620b50d9a
            [member_id] => da45a03b265edd8787f8a258d793cc5d
            [status] => L
            [PLACEMENT] => TASK_VIEW_SIDEBAR
            [PLACEMENT_OPTIONS] => {"taskId":"286"}
        )

Required parameters are marked with *

Parameter
type

Description

DOMAIN*
string

The Bitrix24 address where the widget handler was invoked

PROTOCOL*
string

Secure or non-secure HTTP protocol:

  • 0 - HTTP
  • 1 - HTTPS

LANG*
string

The user interface language of Bitrix24 that invoked the widget. You can localize the interface language in your widget based on this value

APP_SID
string

String identifier of the application that registered the widget handler

AUTH_ID
string

Authorization token OAuth 2 issued for the user who invoked the widget. Can be used for REST API calls on behalf of this user

AUTH_EXPIRES
integer

Time in seconds after which the authorization token will become invalid

REFRESH_ID
string

Refresh token OAuth 2 issued for the user who invoked the widget. Can be used to refresh the authorization token on behalf of this user

member_id*
string

Unique string identifier of Bitrix24 where the widget handler was invoked.

status
string

Type of application that registered the handler for this widget. Accepts values:

PLACEMENT*
string

Code for the widget embedding location. You can use the same handler URL for all your widgets. The value that Bitrix24 will report in the PLACEMENT parameter will help determine from which specific widget embedding location your handler was invoked in each case

PLACEMENT_OPTIONS
string

Additional data in the form of a JSON string that defines the context of the widget execution. For example, this could be an array containing the numeric identifier of the CRM entity in the detail form where the widget handler was invoked, etc. The PLACEMENT_OPTIONS parameter, along with the PLACEMENT parameter, allows you to accurately determine for which specific widget embedding location and object the widget handler was invoked.

PLACEMENT_OPTIONS

The value of PLACEMENT_OPTIONS is a JSON string containing an array of one or more keys.

Required parameters are marked with *

Parameter

Description

taskId*
string

The identifier of the task for which the widget was opened.

It can be used to retrieve additional information using the tasks.task.get method.
