Activity Configuration Examples

If you are developing integrations for Bitrix24 using AI tools (Codex, Claude Code, Cursor), connect to the MCP server so that the assistant can utilize the official REST documentation.

Ready-made examples of the LayoutDto object — the structure that describes the appearance of a timeline entry. This object is passed to the layout field of the crm.activity.configurable.add and crm.activity.configurable.update methods.

Each example shows a complete ready-made configuration and the resulting view the user will see in the timeline. Examples of individual content blocks are collected on their description page.

Icon and logo codes in the examples are taken from the general timeline lists. You can retrieve the full lists using the crm.timeline.icon.list and crm.timeline.logo.list methods.

Scope: crm

Warning

The crm.activity.configurable.add and crm.activity.configurable.update methods work only within the context of an app. Calling them via an incoming webhook will return error ERROR_WRONG_CONTEXT.

Configuration Restrictions

The examples below are composed considering the structural restrictions:

no more than two tags in the entry heading
no more than two buttons in the bottom part of the entry
between one and 20 content blocks in the main area
keys in the associative arrays of the structure — blocks, tags, buttons, items — consist only of Latin letters, digits, hyphens, and underscores
extra fields not present in the object description result in an error

Violating any of these rules returns a validation error. Error codes are listed on the crm.activity.configurable.add and crm.activity.configurable.update method pages.

Card with a Set of Fields

An "Information Message" card with four name-value pairs: deadline, customer, manager, and additional information. Each pair is a withTitle block, which outputs a signature and a nested block with a value. A nested block can be of type text, link, or deadline.

The inline parameter controls the layout: with true, the signature and value are on the same line; with false, the value moves below the signature.

The deadline block inserts the activity deadline and allows it to be changed directly within the card. It is not displayed in an incoming activity or in an activity without a deadline. The conditions under which the deadline cannot be changed are listed in the block description.

The application generates the keys in the blocks array itself — they are not linked to block types. In the example, the key deadline matches the type name, but this is a coincidence rather than a requirement.

{
            "icon": {
                "code": "info"
            },
            "header": {
                "title": "Information message"
            },
            "body": {
                "logo": {
                    "code": "document"
                },
                "blocks": {
                    "deadline": {
                        "type": "withTitle",
                        "properties": {
                            "title": "Deadline",
                            "inline": true,
                            "block": {
                                "type": "deadline"
                            }
                        }
                    },
                    "client": {
                        "type": "withTitle",
                        "properties": {
                            "title": "Client",
                            "inline": true,
                            "block": {
                                "type": "text",
                                "properties": {
                                    "value": "Müller GmbH"
                                }
                            }
                        }
                    },
                    "manager": {
                        "type": "withTitle",
                        "properties": {
                            "title": "Manager",
                            "inline": true,
                            "block": {
                                "type": "link",
                                "properties": {
                                    "text": "Klaus Weber",
                                    "bold": true,
                                    "action": {
                                        "type": "redirect",
                                        "uri": "/company/personal/user/1/"
                                    }
                                }
                            }
                        }
                    },
                    "description": {
                        "type": "withTitle",
                        "properties": {
                            "title": "Additional information in large quantities",
                            "inline": false,
                            "block": {
                                "type": "text",
                                "properties": {
                                    "multiline": true,
                                    "value": "Arrive no earlier than lunchtime. Entrance from the courtyard, gate password 555. Go up to the 5th floor, ask for Klaus Weber. Payment in cash, change from 5000 EUR."
                                }
                            }
                        }
                    }
                }
            }
        }

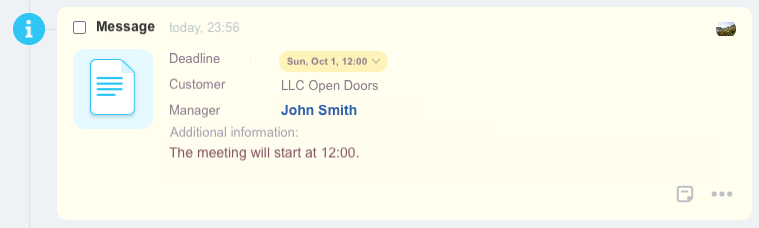

Card with a set of fields

Card with Different Action Types

A configuration that gathers all types of actions: navigating via internal and external links, opening an app from a tag, and sending an event to an app upon a button click.

Both link blocks use the redirect action but behave differently. A relative link to a standard Bitrix24 object that supports opening in a slider will display it in a slider. An external link with a domain opens in a new browser tab.

Both tags open an app and differ in styling: warning provides a yellow background, while primary provides a blue one. Their actionParams sets are also different.

Both buttons send the same confirm event and differ only by the animationType value, so they look the same in the timeline — the difference is visible when clicked. A button with loader blocks the entire record and shows a loader on top of it, while a button with disable blocks only itself. The block is not released automatically: it persists until the app updates the activity using the crm.activity.configurable.update method.

The content of actionParams is set arbitrarily by the app — Bitrix24 passes these values back in the event without parsing them. The blockId key in this example is created by the app and does not reference anything within the configuration itself: the app will decide how to interpret it.

Note

The openRestApp action is not supported in the mobile app. If a scenario must work on mobile devices, use a different action type.

{
            "icon": {
                "code": "document"
            },
            "header": {
                "title": "Example of different types of actions",
                "tags": {
                    "tag1": {
                        "type": "warning",
                        "title": "open application",
                        "action": {
                            "type": "openRestApp",
                            "actionParams": {
                                "myId": 123
                            }
                        }
                    },
                    "tag2": {
                        "type": "primary",
                        "title": "open application",
                        "action": {
                            "type": "openRestApp",
                            "actionParams": {
                                "someImportant": "qwerty"
                            }
                        }
                    }
                }
            },
            "body": {
                "logo": {
                    "code": "document"
                },
                "blocks": {
                    "link1": {
                        "type": "link",
                        "properties": {
                            "text": "Open internal link",
                            "action": {
                                "type": "redirect",
                                "uri": "/crm/deal/details/1/"
                            }
                        }
                    },
                    "link2": {
                        "type": "link",
                        "properties": {
                            "text": "Open external link",
                            "action": {
                                "type": "redirect",
                                "uri": "https://bitrix24.com"
                            }
                        }
                    }
                }
            },
            "footer": {
                "buttons": {
                    "button1": {
                        "title": "rest event",
                        "action": {
                            "type": "restEvent",
                            "id": "confirm",
                            "animationType": "loader",
                            "actionParams": {
                                "blockId": "time"
                            }
                        },
                        "type": "primary"
                    },
                    "button2": {
                        "title": "rest event",
                        "action": {
                            "type": "restEvent",
                            "id": "confirm",
                            "animationType": "disable",
                            "actionParams": {
                                "blockId": "time"
                            }
                        },
                        "type": "primary"
                    }
                }
            }
        }

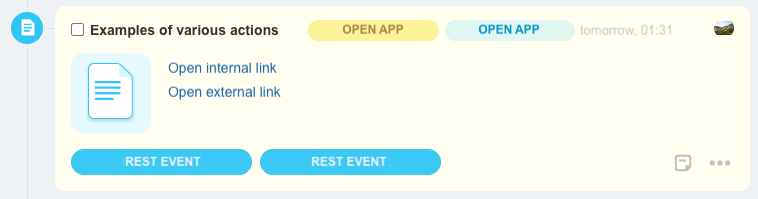

Card with different types of actions

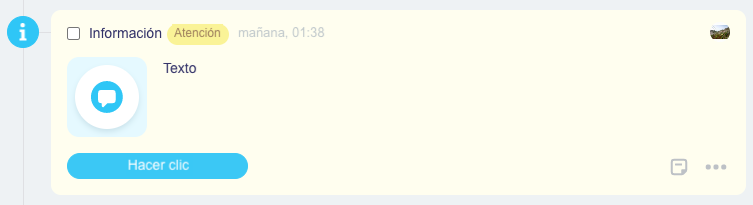

Multi-language Card

A configuration for an app used in different languages. Instead of a string, an associative array of translations is passed to the text field, where the key is the language code and the value is the text in that language. Fields capable of this have the textWithTranslation type: these include the record heading, tag text, block content, and button labels.

Keys can only be languages installed on the portal. An unknown language code will result in a WRONG_LANG error.

Bitrix24 substitutes the version based on the user's interface language. If no translation exists for that language, English is used, and if that is also unavailable, the first value in the array is used.

{
            "icon": {
                "code": "info"
            },
            "header": {
                "title": {"de": "Information", "en": "Information"},
                "tags": {
                    "tag": {
                        "type": "warning",
                        "title": {
                            "de": "Attention",
                            "en": "Warning"
                        }
                    }
                }
            },
            "body": {
                "logo": {
                    "code": "notification"
                },
                "blocks": {
                    "text": {
                        "type": "text",
                        "properties": {
                            "value": {"de": "This text will be displayed differently in different languages", "en": "A text"}
                        }
                    }
                }
            },
            "footer": {
                "buttons": {
                    "button1": {
                        "title": {"de": "Click me", "en": "Push me"},
                        "type": "primary",
                        "action": {
                            "type": "redirect",
                            "uri": "https://bitrix24.com"
                        }
                    }
                }
            }
        }
